100CA Pump Cylinder


Simple Pump's deepest lifting Pump Cylinder Assembly with an output of up to 4.5 ounces per full stroke!

Worldwide Delivery!

The 100CA Pump Cylinder is Simple Pump's deepest pump cylinder. Connects easily to the Simple Pump drop pipes. Pumps water up to 325 feet deep!


Simple Pump Co., LLC ships all over the world. Shipments within the contiguous United States (the 48 adjoining U.S. states and the District of Columbia), Canada, and Mexico are shipped by FedEx ground. Shipments outside of the contiguous United States, Canada, and Mexico are shipped with the respected international carrier or freight forwarder that works best in your area. This includes USPS, FedEx, UPS, DHL, and other common carriers.

Simple Pump Co., LLC BBB Business Review

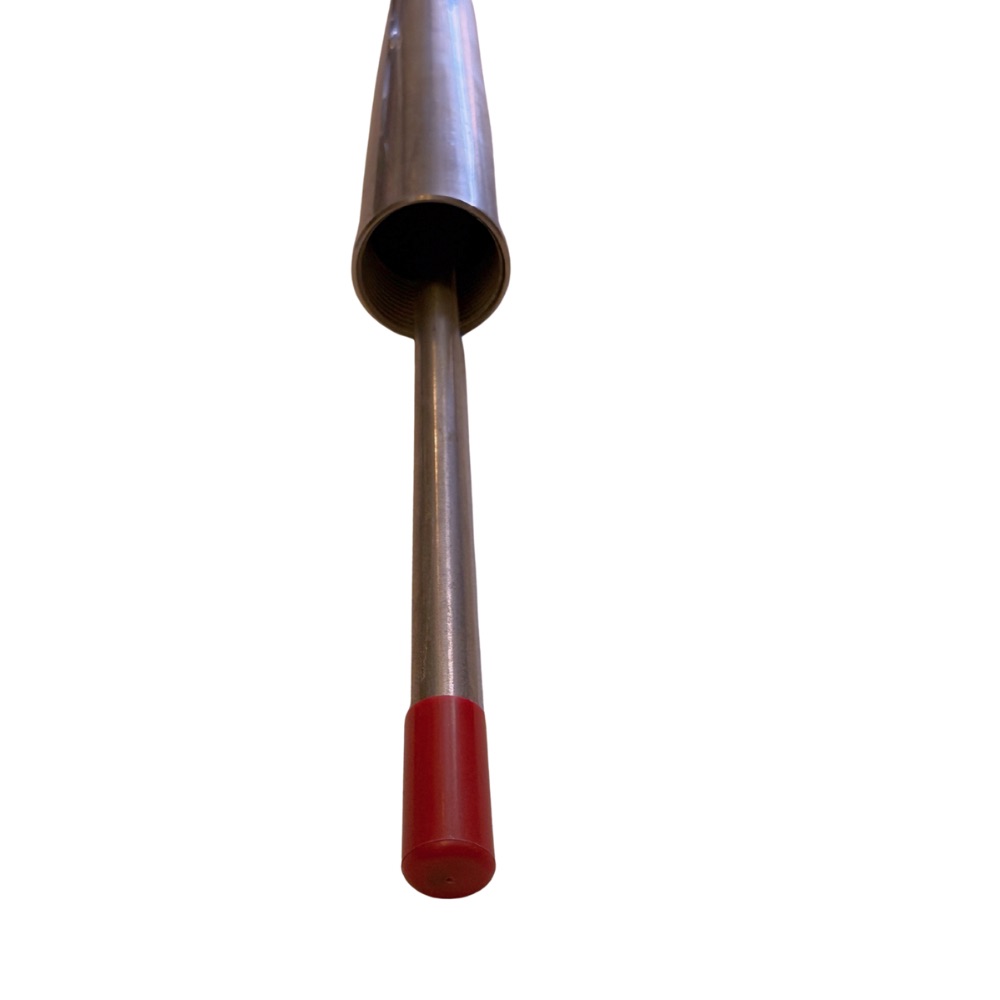

The 100CA Cylinder Assembly is Simple Pump's highest lift pump cylinder assembly with a max lift of 325 feet. The output is up to 4.5 ounces per full stroke. The cylinder produces 13 to 14 full Strokes from a 48” weep hole.

The Model 100 cylinder assembly has an outer diameter of 1.3750" and an inner diameter of 1.1350”.

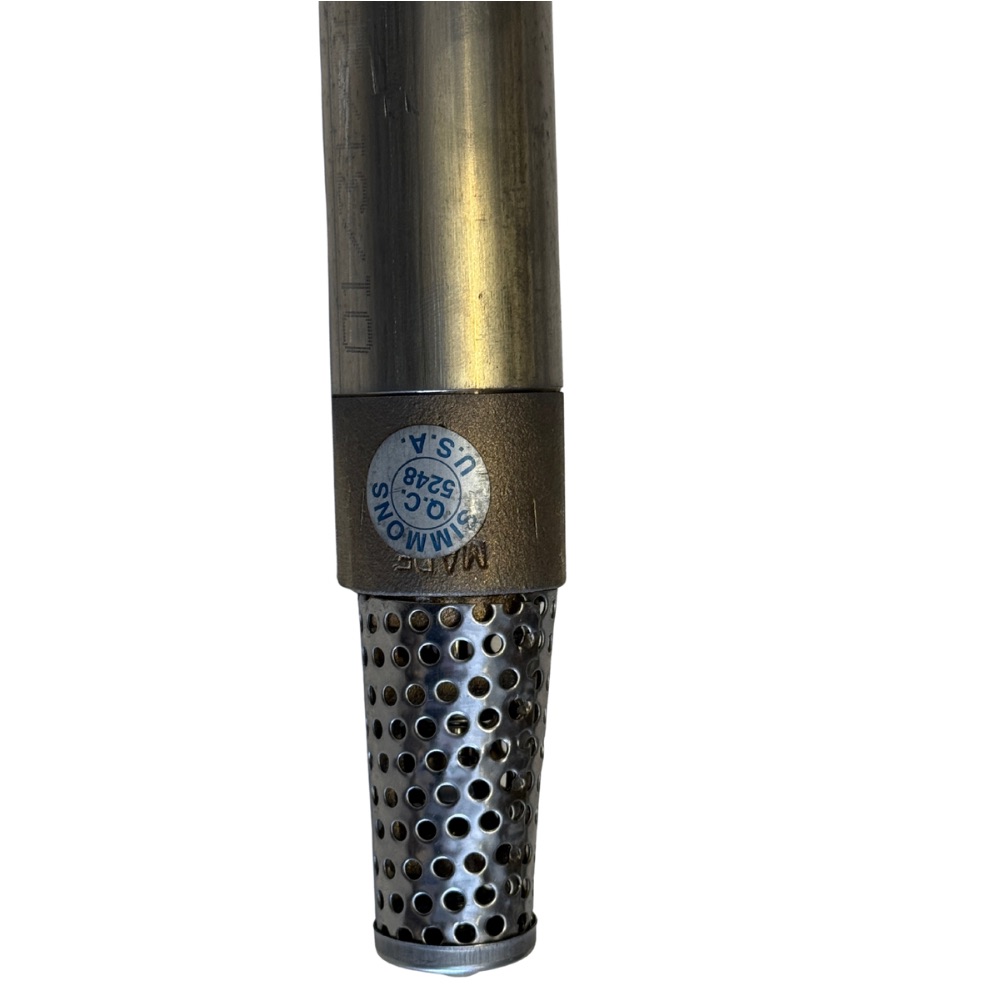

The cylinder has a .75″ 304SS Poppet Check Valve. The piston has a food-grade PVC body and seat with two 90D urethane u-cup seals and two buna n-seals, Viton is optional.

The piston has a 0.75” diameter stainless steel ball.

The max lift (total head)* is 325 feet.

*Total head = water level + vertical rise + 100’ equivalent for pressure (optional)
