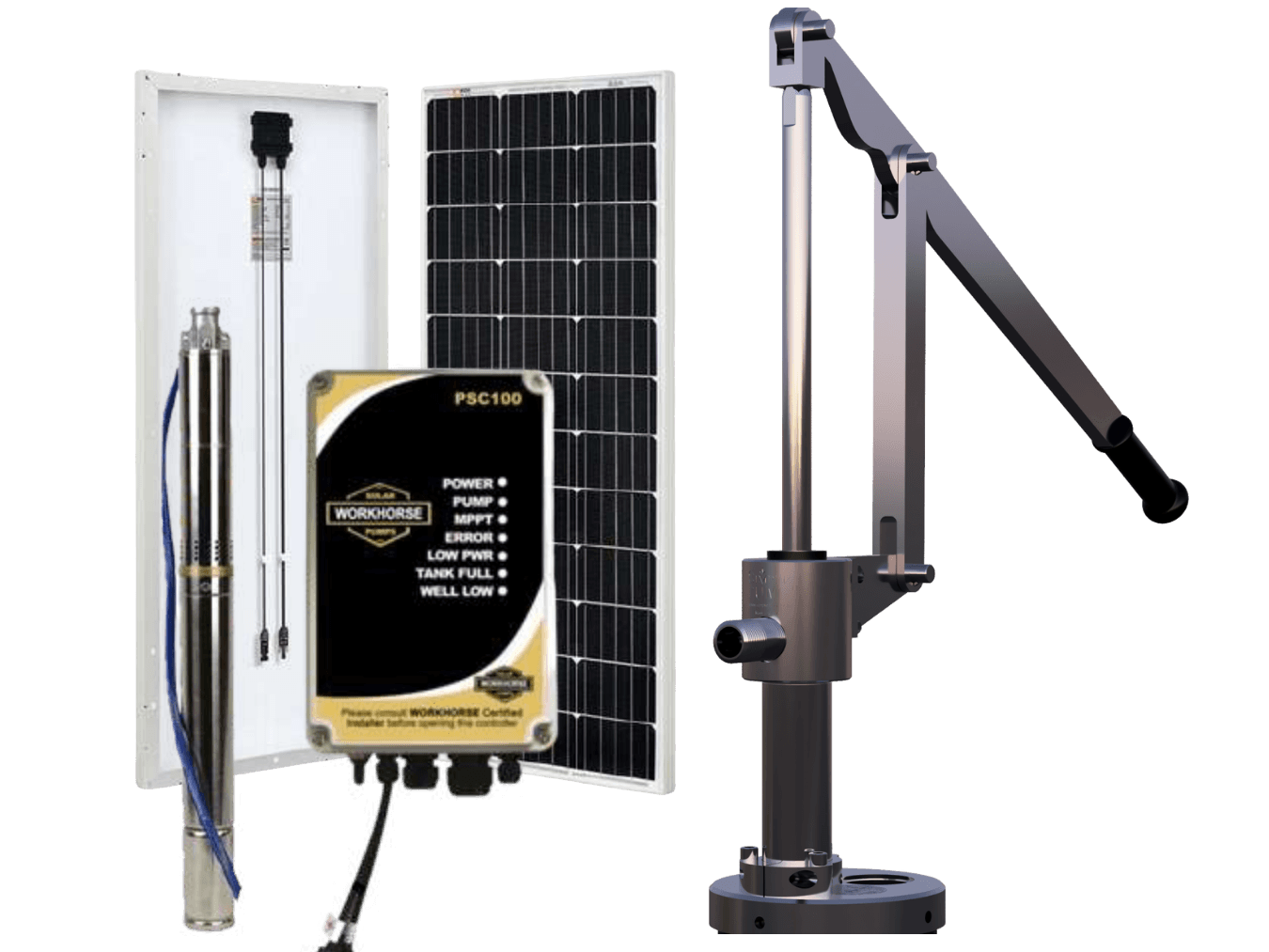

Simple Pump Inline Manual–Solar Well Pump System
Zero-switch solar submersible + manual backup pump from one well.
The Simple Pump Inline Manual–Solar Well Pump System is the only solar well pump system with true zero-switch operation.
The WORKHORSE Narrow Series solar submersible and the Simple Pump hand pump share the same well column through the proprietary Simple Pump Inline Dual-Pump Valve Assembly. No manual valve switching. No plumbing changes. Ever.
Solar panels power the WORKHORSE submersible for automated daily water delivery. When you reach for the Simple Pump lever arm, the valve shifts automatically, giving you immediate manual backup water.
Two fully independent water sources. One well. Zero switches. Water security without compromise.
Available through Simple Pump dealers and WORKHORSE Certified Installers.
True Water Independence or Just Another Dependency?
Conventional well pumps stop working when you need them most
Electricity Dependent Water
When your conventional well pump motor stops, your water stops
Single Point of Failure
Conventional well pumps leave you stranded during any power condition
Emergency Preparedness Gap
When disaster strikes, you need water access regardless of power status
Don't Wait for Emergency to Strike
The best time to install a backup water system is before you need it. When the power goes out, it's too late to wish you had prepared.
Two Pumping Methods. One Well.
The WORKHORSE solar submersible pump handles your daily water automatically. The Simple Pump hand pump is always ready as backup — no batteries, no switching, no compromise. Available through authorized dealers.
Solar-automated daily pumping
WORKHORSE submersible runs 5–10 hours/day on solar power. No batteries required — direct solar operation. Can also be run off a generator, 110V grid power, or battery bank.
Manual backup always ready
Simple Pump lever arm works independently at any time — even while solar is running. No batteries, no power required.
Zero switching. Ever.
The Simple Pump Inline Dual-Pump Valve Assembly automatically isolates each pump. When solar runs, the valve closes. When you pump manually, it opens instantly. No manual valve. No plumbing changes. No switching — ever.
WORKHORSE Certifications: CE (all models), TUV (W3H-6-500)
WORKHORSE W3H-6-500 (3"): CE and TUV certified. WORKHORSE W2H-5-200 (2"): CE certified. Both models meet NRCS requirements.
No-programming PSC100 controller
Manual speed and timer dials — no app, no Wi-Fi, no programming. Low-water auto-shutoff included.
Inline Dual-Pump Valve Assembly: Manufactured by Simple Pump
The valve assembly connecting the two systems is Simple Pump's own proprietary product. 15-year warranty.
Solar System Specifications
Detailed specifications for the Simple Pump Inline Manual–Solar Well Pump System. All Simple Pump systems are engineered for reliability and built to last.
Manual Pump Performance
Water When You Need It
Deep Well Access
Reliable water from wells up to 325 feet static water level
Emergency Ready
Direct solar panel operation — manual lever arm provides water access any time, no batteries required
Peace of Mind
Simple Pump Inline Dual-Pump Valve Assembly: 15-year Simple Pump warranty. WORKHORSE pump: 3-year WORKHORSE warranty. Simple Pump hand pump: Simple Pump standard warranty. - Made in USA since 1999
Configure Your Water Security System
Every well is unique. Our experts will configure the perfect manual pump system for your specific static water level and daily water needs.
WORKHORSE Narrow Series Models
Two models for residential and agricultural wells. Both use helical rotor technology for deep installation capability, with field-replaceable helical mechanisms for easy service. PSC100 solar controller included with every model — no programming required.
Authorized Distributor

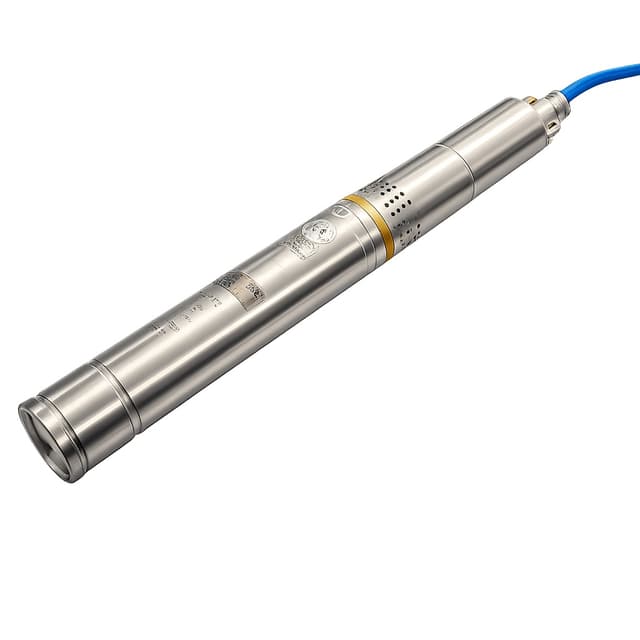

W2H-5-200

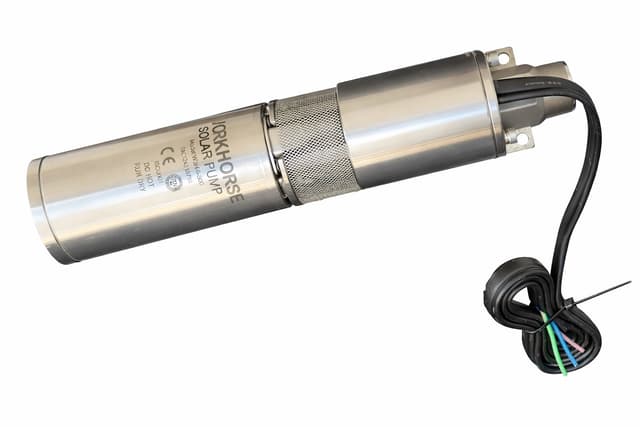

W3H-6-500
| Model | Type | Max Flow | TDH* | Diameter | Min Casing | Solar Input | Valve Assy |
|---|---|---|---|---|---|---|---|
| W2H-5-200 | Helical | ~7 GPM | ~320 ft | 2.01" | 3" | DC 54–72 Vmp | 400–800W | Valve-1/2-Assy |
| W3H-6-500 | Helical | ~10 GPM | ~425 ft | 3.01" | 4" | DC 36–72 Vmp | 200–800W | Valve-1-Assy |
Max Voc 90V all models. Battery backup 48V recommended (optional).
Notes:
- •* TDH values are Feet of Head at optimal rated solar input power, per WORKHORSE model naming convention. Actual performance varies by wattage — see pump curves for full operating range.
- •WORKHORSE Certifications: W3H-6-500 (3"): CE, TUV | W2H-5-200 (2"): CE. Both models meet NRCS requirements.
- •Warranty: 3-year WORKHORSE warranty. Simple Pump Inline Dual-Pump Valve Assembly: 15-year Simple Pump warranty.
- •Run time: Unlimited continuous duty. Solar: 5–10 hrs/day depending on location.
PSC100 Solar Controller — Included with Every Narrow Series Pump
Performance Charts: Flow Rate vs. Total Dynamic Head
Shows GPM output at different TDH (well depth + pressure head) values at 400W, 500W, 600W, 700W, and 800W solar input. Helical rotor technology (black/gold curves) provides consistent deep-well performance. The shaded region indicates the ideal operating zone.
W2H-5-200 — Max TDH ~320 ft | Max ~7 GPM

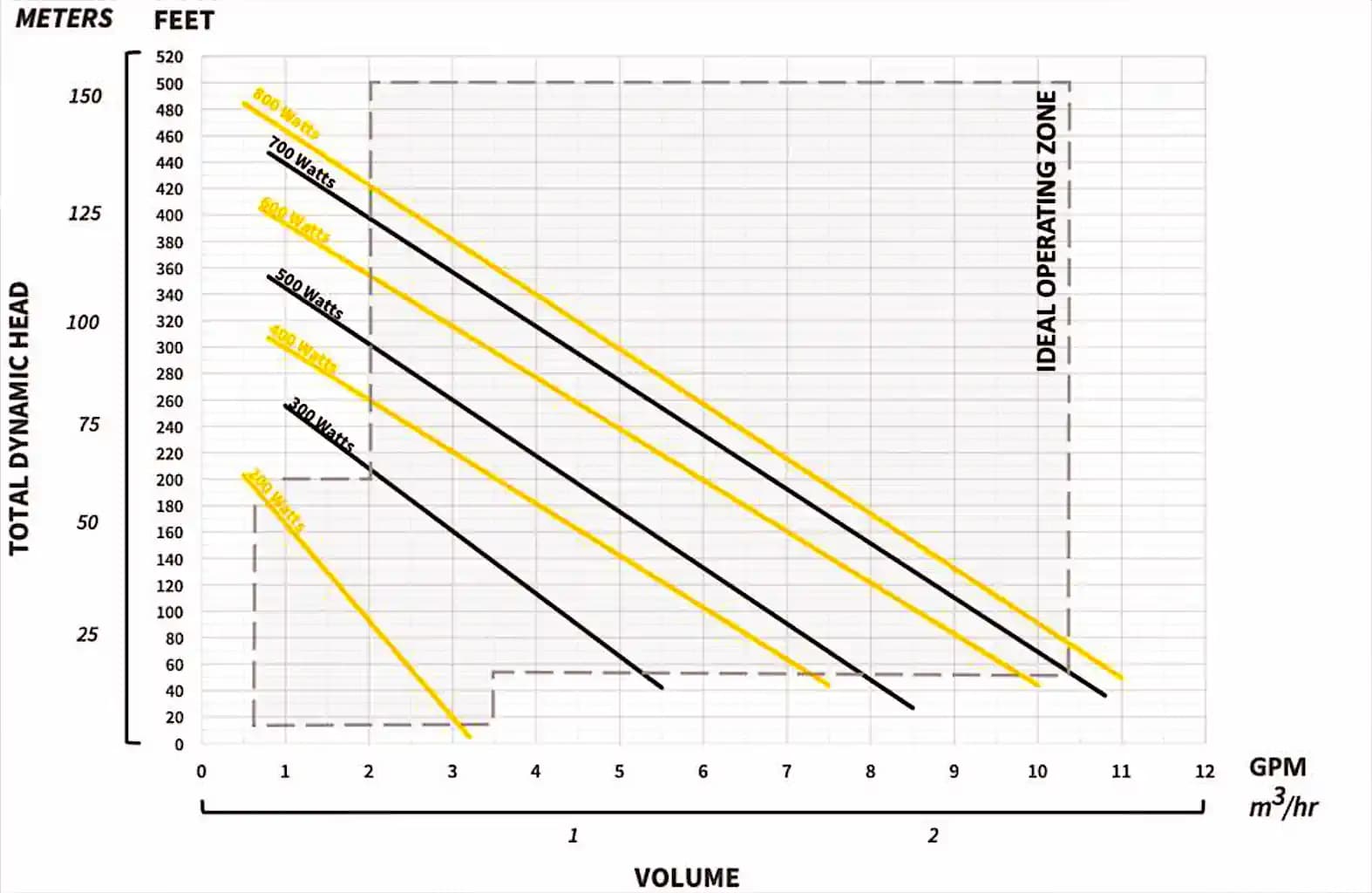

W3H-6-500 — Max TDH ~425 ft | Max ~10 GPM
Source: WORKHORSE Pumps Narrow Series specifications. Charts used with permission.
Ready to Get Started?
Seeing is believing. Request a detailed quote and our experts will help you configure the perfect Simple Pump Inline Manual–Solar Well Pump System for your well.
Configure Your Well Pump System
Complete off-grid water independence with solar power. Our experts will configure the perfect system for your specific requirements and provide accurate pricing based on your well specifications.
What You'll Receive
Request a free quote for exact pricing based on your well specifications

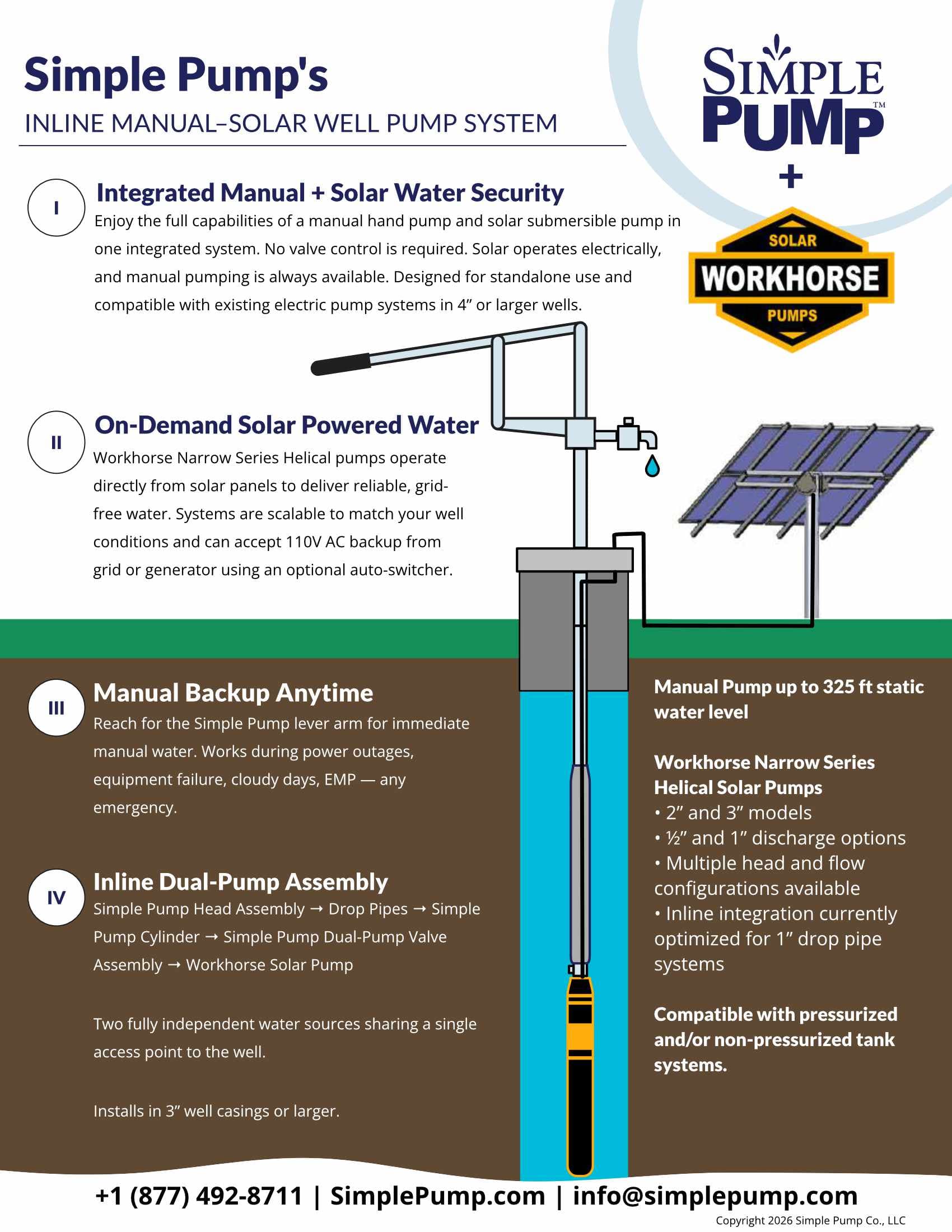

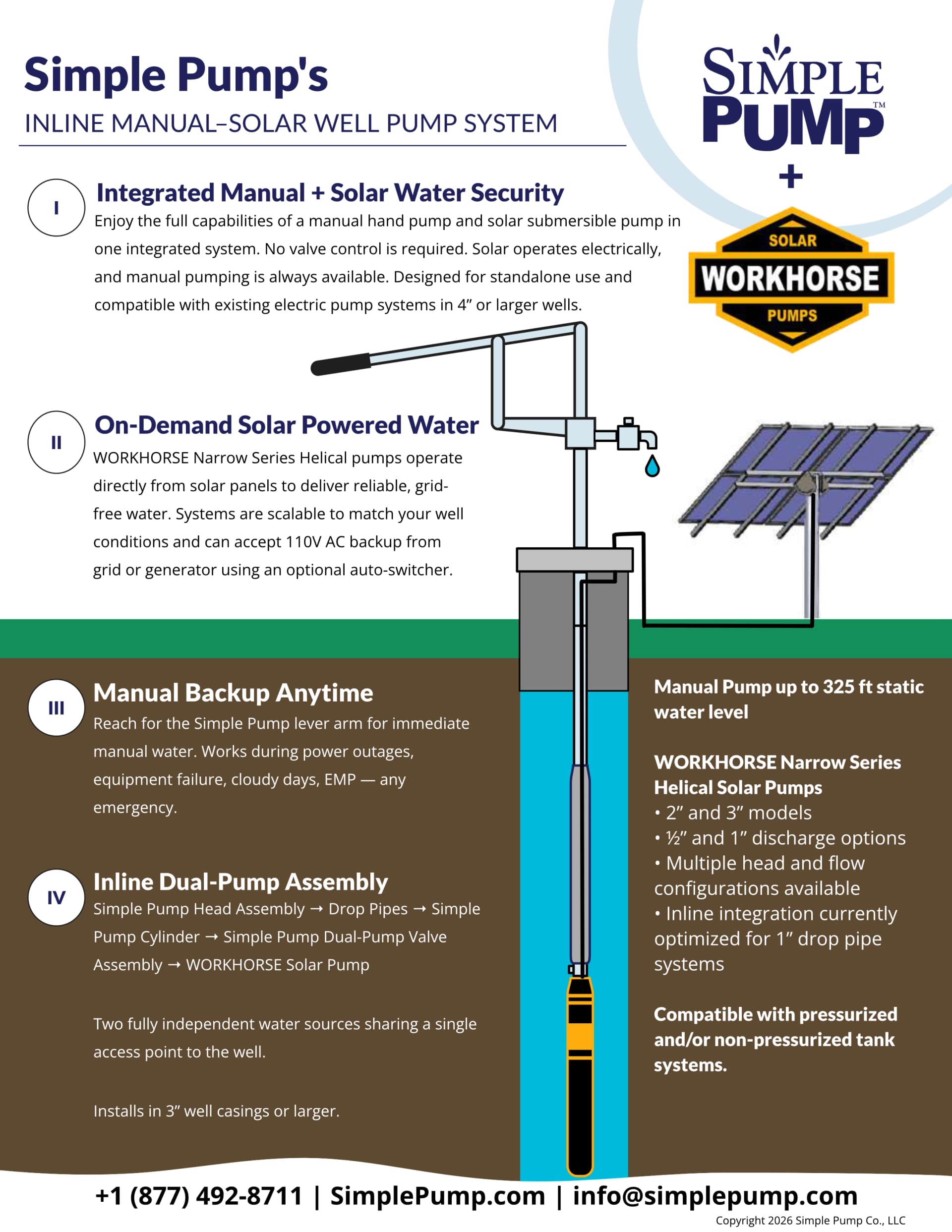

How the Combined System Works
One well, one inline system — automated solar and always-ready manual backup, working together.
WORKHORSE Solar Submersible Pump
Sits at the base of the assembly. Powered by solar panels on the surface. Runs 5–10 hours/day automatically. Pushes water up through the Simple Pump Inline Dual-Pump Valve Assembly.
Simple Pump Inline Dual-Pump Valve Assembly
Manufactured by Simple Pump. Connects the WORKHORSE pump to the Simple Pump cylinder via NPT threads. Closes under pressure (solar pumping). Opens under vacuum (hand pumping). The two systems share the water column without interference.
Spring Check Valve
Positioned above the Simple Pump Inline Dual-Pump Valve Assembly. Prevents water backflow when switching between modes.
Simple Pump Cylinder + Drop Pipes
Standard Simple Pump cylinder operates via the lever arm. Same 325 ft max static water level as a standalone Simple Pump — the solar submersible does not reduce manual capability.
Simple Pump Pump Head with Lever Arm
Sits on top of the well head. Use the lever arm to get water manually any time the solar pump isn't running.
Dealer Installation Required
Available through Simple Pump dealers and WORKHORSE Certified Installers. Your dealer will size the solar array and configure the PSC100 for your well.
Find a dealer near you →Frequently Asked Questions
Everything you need to know about the Simple Pump Inline Manual–Solar Well Pump System
Have More Questions?
Our pump experts are here to help you choose the right system for your needs.
Complementary Systems
Combine with manual systems for ultimate reliability
Deep Well Hand Pump
Up to 325 feet
Manual operation for static water levels up to 325 feet - the deepest reach of any hand pump
Best for:
Deep wells, backup water source
Shallow Well Suction Pump
Up to 25 feet
Perfect backup solution for static water levels up to 25 feet with pressure tank capability
Best for:
Shallow wells, easy installation
Inline Dual-Pump Valve Assembly
Solar submersible pump integration
Inline valve assembly that connects any compatible solar submersible pump to your Simple Pump — zero-switch dual-pump operation from a single well
Best for:
Submersible integration, dual-pump systems
Not Sure Which System Is Right for You?
Our quick price estimate tool helps you choose the perfect pump based on your static water level, water needs, and specific requirements.
Need personalized recommendations? Our water system experts can help you choose the right solution.
Already Have One of These Systems?
The Simple Pump Inline Dual-Pump Valve Assembly makes it easy to add the other. Whether you're starting from a Simple Pump or a WORKHORSE, the path to a zero-switch dual-pump system is a single valve upgrade.
Already Have a Simple Pump Hand Pump?
Add a WORKHORSE Narrow Series solar submersible to your existing Simple Pump system. The Inline Dual-Pump Valve Assembly is compatible with every Simple Pump cylinder manufactured since 1999 — no new pipe string, no new pump head.
- ✓Works with 100CA, 125CA, and 200CA cylinders
- ✓Manual performance unchanged after installation
- ✓WORKHORSE model sized for your well depth and flow needs
Already Have a WORKHORSE Pump Installed?
Add a Simple Pump hand pump as a no-switch manual backup. The Inline Dual-Pump Valve Assembly threads inline between your existing WORKHORSE pump and a new Simple Pump cylinder — giving you manual water access any time, no batteries required.
- ✓Compatible with WORKHORSE W2H-5-200 and W3H-6-500
- ✓Solar operation unchanged — WORKHORSE continues running normally
- ✓Hand pump provides manual backup up to 325 ft static water level
Automated Water. Manual Backup. One Well.
The WORKHORSE solar submersible handles your daily water automatically. The Simple Pump lever arm is always there when you need it — no batteries required, no grid dependency. Available through Simple Pump dealers and WORKHORSE Certified Installers.
✓ CE & TUV certified (WORKHORSE W3H-6-500) • ✓ CE certified (WORKHORSE W2H-5-200) • ✓ Simple Pump Inline Dual-Pump Valve Assembly: 15-year warranty • ✓ Simple Pump — Made in U.S.A. since 1999 • ✓ WORKHORSE Pumps — U.S. Owned & Engineered
