Inline Dual-Pump Valve Assembly
Solar submersible pump integration component — the industry's first inline valve assembly enabling true off-grid zero-switch dual-pump well operation.
The Simple Pump Inline Dual-Pump Valve Assembly makes true inline dual-pump operation possible in a single well.
This proprietary check-valve tee threads your Simple Pump cylinder and compatible solar submersible pump together using standard NPT fittings. When the solar submersible runs, system pressure closes the valve ensuring all water is pumped through the system. When you operate the hand pump, minimal vacuum opens the valve allowing water to be pumped through the system.
No manual valve switching. No re-plumbing. No compromises.
The Inline Dual-Pump Valve Assembly is the critical connection component that allows a solar submersible and a Simple Pump hand pump to operate independently in the same string of drop pipe.
Compatible with Workhorse Narrow Series solar submersibles. Workhorse submersible pumps and Simple Pump hand pump systems sold separately.
The Simple Pump Inline Dual-Pump Valve Assembly is manufactured by Simple Pump in the USA and backed by a 15-year warranty. Valve inserts available for quick replacement.
Do You Need More Water than You Can Physically Pump?
Upgrade from manual pumping while keeping backup capability
Manual Pumping Fatigue
Hand pumping 50+ gallons daily becomes exhausting and time-consuming
Single Point of Failure
Submersible pumps leave you stranded during any power interruption
Emergency Preparedness Gap
When disaster strikes, you need water access regardless of grid status
Don't Wait for Emergency to Strike
The best time to install a backup water system is before you need it. When the power goes out, it's too late to wish you had prepared.
What the Inline Dual-Pump Valve Assembly Is
The Inline Dual-Pump Valve Assembly is a valve component — not a complete pump system. It is the connection piece that installs inline between a compatible solar submersible pump and your Simple Pump cylinder, enabling both to operate from the same string of drop pipe with no manual switching.
✓ Included
Simple Pump Inline Dual-Pump Valve Assembly (Valve-1/2-Assy and Valve-1-Assy). 15-year warranty. Spring check valve and cylinder bottom conversion kit sold separately.
Sold separately at simplepump.com
Simple Pump hand pump system (cylinder, drop pipes, pump head, lever arm).
Available through dealers
Workhorse Narrow Series solar submersible pumps — sized and installed by authorized dealers and Workhorse Pumps installers.
The Valve That Makes Inline Dual-Pump Operation Possible
One proprietary check valve tee. Thread it onto your solar submersible outlet and into your Simple Pump cylinder. Pressure closes it for the solar submersible. Vacuum opens it for the hand pump. No manual switching, ever.
Two independent water systems in one well
Solar submersible pumps automatically. Hand pump provides manual backup at any time. Both share the same string of drop pipe without interference.
Universal NPT connection
Valve-1/2-Assy fits ½" FNPT solar submersible ports. Valve-1-Assy fits 1" FNPT. Works with Workhorse Narrow Series solar submersibles.
15-year Simple Pump warranty
The Simple Pump Inline Dual-Pump Valve Assembly carries Simple Pump's 15-year warranty. Manufactured by Simple Pump — no third-party components.
Retrofit-compatible to 1999
Works with all Simple Pump cylinder sizes (100CA, 125CA, 200CA) and all Simple Pump systems installed since 1999.
Pressure tank capable
Manual pump still pressurizes tanks up to 45 PSI with valve assembly installed.
Manufactured by Simple Pump
Simple Pump's own proprietary product — engineered and manufactured in-house.

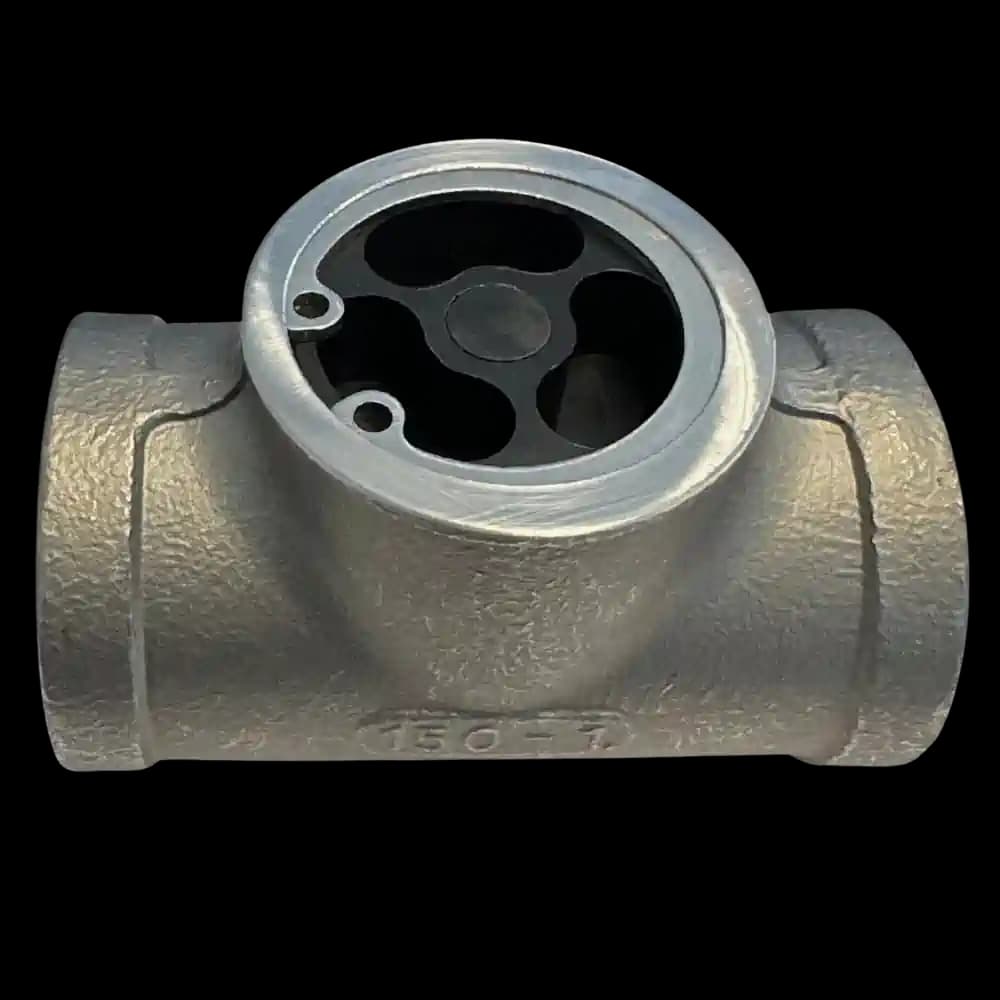

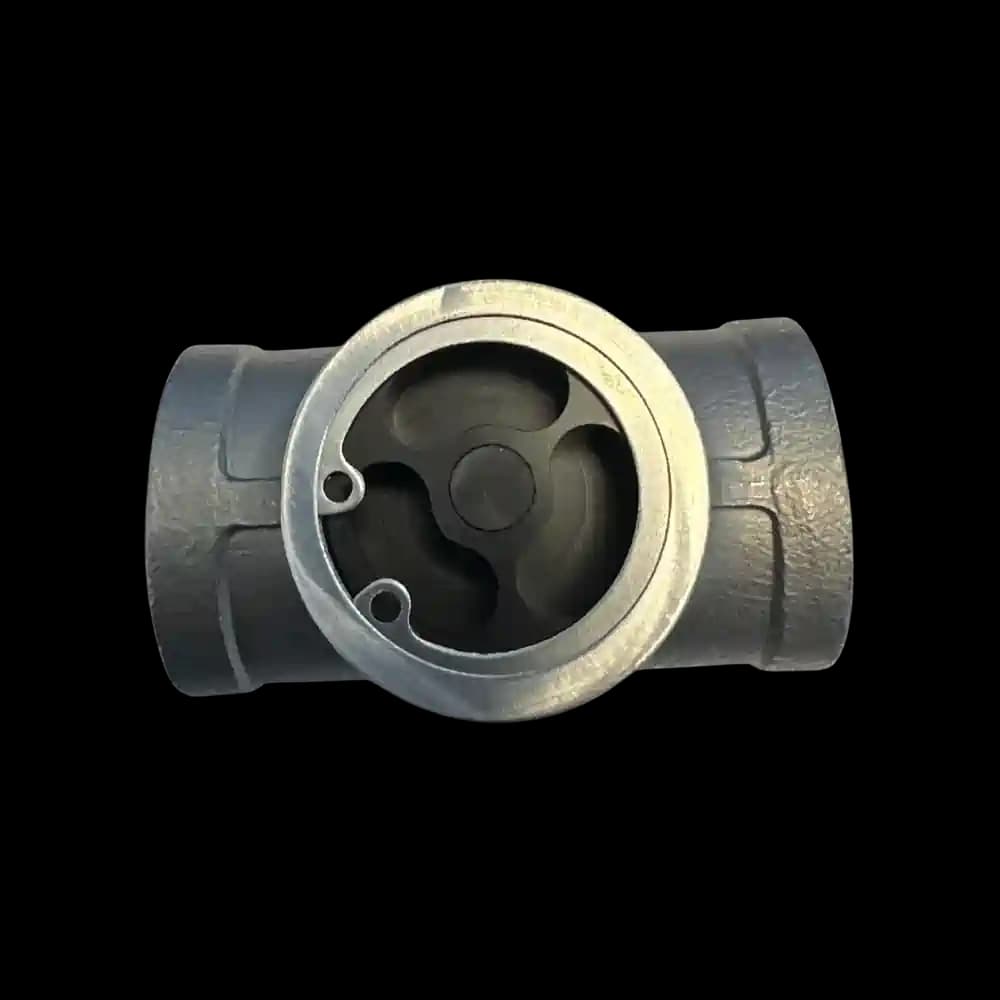

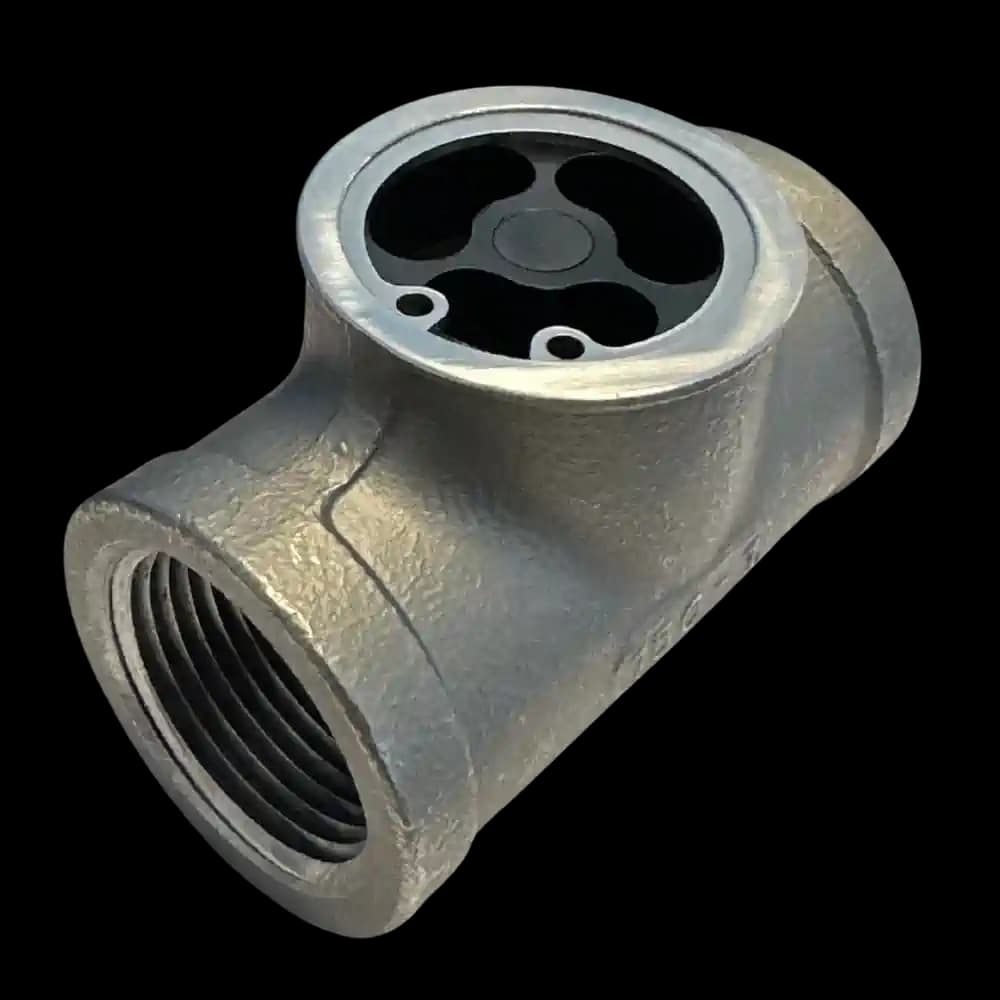

Valve-1-Assy — See It Up Close
304 stainless steel tee, water-grade acetal insert. Standard 1" NPT connections both ends. Click any image to enlarge.
Valve-1-Assy shown. Valve-1/2-Assy (½" NPT) also available for 100CA and 125CA cylinders.
Simple Pump Inline Dual-Pump Valve Assembly Specifications
Two sizes. Universal NPT connection. Manufactured by Simple Pump. 15-year warranty.
| Model | Thread | Installed OD | Compatible Cylinders | Warranty |
|---|---|---|---|---|
| Valve-1/2-Assy | ½" NPT both ends | 2.0" | 100CA, 125CA | 15 years |
| Valve-1-Assy | 1" NPT both ends | 2.5" | 100CA, 125CA, 200CA | 15 years |
Material: 304 stainless steel tee + water-grade acetal insert. Manufactured by Simple Pump. Compatible with all Simple Pump systems back to 1999. Spring check valve and cylinder bottom conversion kit sold separately. Valve inserts available for quick replacement.
Workhorse Narrow Series Compatibility
| Workhorse Model | Suction Port | Inline Dual-Pump Valve Assembly | Connection |
|---|---|---|---|
| W2H-5-200 | ½" FNPT | Valve-1/2-Assy | Direct |
| W3H-6-500 | 1" FNPT | Valve-1-Assy | Direct |
Workhorse systems require dealer installation: The Workhorse Narrow Series solar submersible system is available through Simple Pump dealers and authorized Workhorse Pumps professional installers. Find a dealer near you →
Ready to Get Started?
Seeing is believing. Request a detailed quote and our experts will help you configure the perfect Inline Dual-Pump Valve Assembly for your well.
Configure Your Well Pump System
Design the perfect automated pumping solution with manual backup capability. Our experts will configure the perfect system for your specific requirements and provide accurate pricing based on your well specifications.
What You'll Receive
Request a free quote for exact pricing based on your well specifications
Frequently Asked Questions
Everything you need to know about the Simple Pump Inline Dual-Pump Valve Assembly
Have More Questions?
Our pump experts are here to help you choose the right system for your needs.
Manual Backup Options
Add manual pump capabilities for complete water security
Deep Well Hand Pump
Up to 325 feet
Manual operation for static water levels up to 325 feet - the deepest reach of any hand pump
Best for:
Deep wells, backup water source
Shallow Well Suction Pump
Up to 25 feet
Perfect backup solution for static water levels up to 25 feet with pressure tank capability
Best for:
Shallow wells, easy installation
Inline Manual–Solar Well Pump System
Solar + manual backup
Workhorse solar submersible + Simple Pump hand pump. Automated solar water delivery with zero-switch manual backup — no batteries needed for hand pump
Best for:
Solar automation + manual backup, off-grid wells
Not Sure Which System Is Right for You?
Our quick price estimate tool helps you choose the perfect pump based on your static water level, water needs, and specific requirements.
Need personalized recommendations? Our water system experts can help you choose the right solution.
Already Have a Simple Pump?
If you installed a Simple Pump hand pump any time since 1999, the Inline Dual-Pump Valve Assembly is compatible with your existing system. Add solar submersible capability without replacing your pump.
What “Backward Compatible” Means
- ✓Works with 100CA, 125CA, and 200CA cylinders — every Simple Pump cylinder manufactured since 1999
- ✓Threads onto your existing drop pipe configuration — no new pipe string required
- ✓Your existing pump head, lever arm, and pressure connections remain unchanged
- ✓Manual pumping depth and performance are unchanged after installation
How to Add the Inline Dual-Pump Valve Assembly
- 1Contact your Simple Pump dealer or an authorized Workhorse Pumps installer
- 2Share your cylinder size (100CA, 125CA, or 200CA) and your target solar submersible model
- 3Your installer pulls the Simple Pump, threads the Inline Dual-Pump Valve Assembly to the bottom of the Simple Pump Cylinder and into the solar submersible, and re-installs the system
- 4Both systems are operational — your hand pump unchanged, submersible added inline
Add Solar Submersible Power to Your Simple Pump System
The Simple Pump Inline Dual-Pump Valve Assembly is Simple Pump's newest proprietary product — connecting compatible solar submersible pumps to your Simple Pump hand pump cylinder. Two water sources, one well, 15-year warranty.
✓ Manufactured by Simple Pump • ✓ 15-year warranty • ✓ Compatible with Simple Pump systems since 1999
