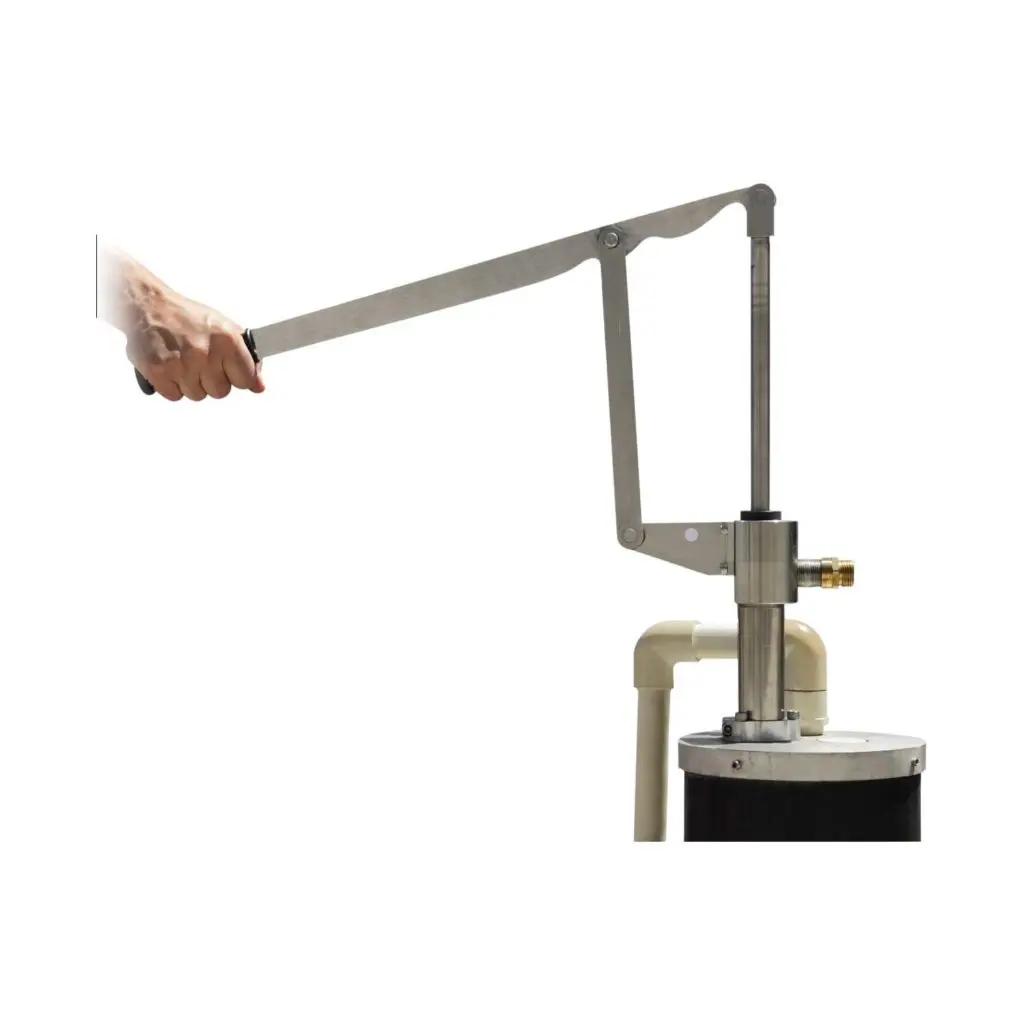

Deep Well Pump

MSRP $
2200
-
3850
deepwellhandpumpkit

Discover Simple Pump’s Deep Well Pump, designed for reliability and versatility to ensure consistent water access even in the toughest conditions.

or
Worldwide Delivery!
Details

Simple Pump’s deep well pump works in wells with static water depths up to 325 ft and fits 2” wells or 4”+ wells alongside submersible pumps.

Downloads
Videos
Shipping

Simple Pump Co., LLC ships all over the world. Shipments within the contiguous United States (the 48 adjoining U.S. states and the District of Columbia), Canada, and Mexico are shipped by FedEx ground. Shipments outside of the contiguous United States, Canada, and Mexico are shipped with the respected international carrier or freight forwarder that works best in your area. This includes USPS, FedEx, UPS, DHL, and other common carriers.

Simple Pump Co., LLC BBB Business Review

Key Features

  • Hand pump water from depths up to 325 feet
  • Made in the USA from aerospace-grade, lead-free stainless steel
  • Safe Drinking Water Act compliant
  • Fits in almost all deep wells either alone in a 2-inch or 3-inch well or next to the submersible pump in 4-inch and larger wells
  • Can pump directly into your pressure tank
  • Freeze-proof for 24/7 reliability in extreme weather
  • Easily convertible between hand and motor operation

Superior Performance and Efficiency

The Simple Pump outperforms the competition:

  • Requires less pumping effort compared to other pumps at identical water levels
  • Capable of pumping more water at a deeper static water level than any other hand pump
  • Customizable to meet your specific well requirements

Designed with both performance and user convenience in mind, the Simple Pump Well Pump delivers unmatched efficiency and reliability. Its lightweight yet durable aerospace-grade stainless steel construction ensures a lifetime of service with minimal maintenance. Unlike other pumps, the Simple Pump offers the unique ability to pump directly into your home’s pressure tank, allowing full use of faucets, showers, and appliances. Whether for emergency preparedness, off-grid living, or everyday use, this pump stands out with its adaptability to various well setups and conditions. With the option to easily convert to motorized operation, it’s a versatile solution that grows with your needs.

Versatility and Adaptability

Our well pump system offers unmatched flexibility:

  • Install alongside existing submersible pumps in 4-inch or larger wells
  • Use our mounting plate adapter for wide wells or cisterns
  • Standard 3/4" hose or 3/4" FNPT pipe connections
  • Upgrade to motor operation without replacing the entire system

With its thoughtful design, the Simple Pump adapts seamlessly to a variety of water access needs. Whether you’re dealing with narrow wells, wide cisterns, or unique installation challenges, the system’s customizable components ensure a perfect fit. Its freeze-proof option and ability to perform reliably in extreme weather conditions make it a dependable choice for year-round use. Moreover, the pump’s compatibility with pressure tanks allows you to maintain full functionality of your home’s plumbing, offering convenience and peace of mind. This exceptional versatility ensures that the Simple Pump integrates effortlessly into both residential and off-grid setups.

Durability and Low Maintenance

Built to last with minimal upkeep:

  • Lifetime warranty against defective materials and workmanship
  • Constructed from corrosion-resistant 304 stainless steel
  • Food-grade components ensure water purity

The Simple Pump is engineered for longevity and reliability, making it a low-maintenance solution for your water needs. Its robust design minimizes wear and tear, even with frequent use, while the corrosion-resistant materials protect against harsh environmental conditions. The pump’s precision machining and high-quality components reduce the need for frequent servicing, saving you time and money over its lifetime. Additionally, the use of food-grade materials not only ensures safe, clean drinking water but also underscores the pump’s commitment to health and safety standards. Whether for daily use or emergency preparedness, the Simple Pump is a trusted, worry-free investment in durable water access.

Technical Specifications

Cylinder Max Lift* Output per Stroke Cylinder Dimensions
100L 325 feet 4.5 ounces 18.25" L, 1.375" OD
125L 225 feet 8.5 ounces 18.25" L, 1.755" OD
200L 110 feet 20 ounces 21" L, 2.5" OD

* Total head = water level + vertical rise + 100’ equivalent for pressure (optional}

Drop Pipe and Rod

Simple Pump Drop Pipes are engineered for durability and ease of installation, crafted from Schedule 80 PVC with robust stainless steel threaded couplers, eliminating the need for gluing. These high-quality materials ensure a secure, leak-free connection while maintaining long-term reliability.

The top drop pipe is designed with a 1/16-inch diameter weep hole, drilled into the sidewall of the PVC pipe, 48 inches below the top. This standard configuration effectively prevents freezing by allowing water to drain below the frost line. For regions with deeper freezing levels, the weep hole can be drilled at any desired depth at no additional charge, ensuring reliable performance in even the harshest climates.

With available drop pipe kits in 105 inches, 54 inches, and 27 inches, along with two top drop pipe options measuring 105 inches and 54 inches, Simple Pump provides a fully customizable solution to meet the specific requirements of your well. This thoughtful design ensures the cylinder is placed at the ideal depth for consistent operation and optimal water access.

The combination of drop pipes and rods is tailored to your well’s static water level, casing size, and environmental factors. By providing customized solutions, Simple Pump ensures that your system operates efficiently and effectively, no matter the conditions.

Cylinder

The Simple Pump system offers three cylinder options, each designed to provide optimal performance based on the static water level and desired pumping flow rate. These cylinders are machined from aerospace-grade, lead-free stainless steel for durability and are equipped with food-grade components to ensure water purity.

  • Model 100 Cylinder: Designed for static water levels up to 325 feet, this cylinder delivers 4.5 ounces per full stroke. It has dimensions of 18.25” in length and 1.375” outer diameter, making it ideal for deeper wells requiring efficient pumping with minimal effort.
  • Model 125 Cylinder: Suitable for static water levels up to 225 feet, it delivers 8.5 ounces per full stroke. With a slightly larger diameter of 1.75”, it balances higher flow rates with effective lifting.
  • Model 200 Cylinder: Optimized for static water levels up to 110 feet, this cylinder offers a high output of 20 ounces per full stroke. Its larger 2.5” outer diameter ensures maximum water volume per stroke.

The cylinder size is selected based on your well specifications, including static water level, desired flow rate, and casing dimensions. This tailored approach ensures maximum efficiency, reliability, and ease of use for your pumping needs.

Customization Options

Tailor your Simple Pump to your needs:

The Simple Pump well pump system ensures a perfect match for your specific requirements with its wide range of customization options. Whether you need a system for emergency backup, off-grid living, or daily household use, you can configure the pump to meet your unique needs. Select from various handle lengths and styles to optimize comfort and efficiency, ensuring the right fit for users of all strengths and abilities. With the ability to upgrade to motorized or solar-powered operation, the system provides unmatched flexibility to evolve alongside your changing water access needs. This adaptability makes the Simple Pump a truly personalized solution for reliable, long-term water security.

Pumping Into Pressure

The Simple Pump is uniquely designed to pump into a pressure tank, providing seamless integration with your home’s plumbing system. With the ability to generate up to 45 psi, the Simple Pump ensures efficient water delivery to faucets, showers, and appliances, making it a reliable solution for daily use or emergencies.

Check Valve / Gauge Assembly

To enhance functionality, the Simple Pump offers an optional Check Valve / Gauge Assembly, a one-way valve with a pressure gauge that simplifies connection to your plumbing system or use for pumping uphill. The assembly includes:

  • A port to let air in: Ensures smooth operation.
  • Drip port: Allows water to drip out of the pump head through the weep hole, providing freeze protection.
  • Pressure gauge: Monitors system pressure.
  • Nipple: For secure connections.
  • Brass plug: Ensures tight sealing.

Pressure Switch Options

For added convenience, the Simple Pump system includes two pressure switch options that can be used in the manual pump configuration or the motor operated configuration:

Pressure Switch 20 psi - 40 psi:
  • Automatically activates the pump when system pressure drops to 20 psi and turns off at 40 psi (factory set).
  • Requires a well pressure tank for optimal performance.
  • Suitable for pumping at lower pressure ranges, providing efficient and reliable operation.
Pressure Switch 30 psi - 50 psi:
  • Automatically activates the pump when system pressure drops to 30 psi and turns off at 50 psi (factory set).
  • Requires a well pressure tank for operation.
  • Ideal for higher pressure requirements, delivering reliable performance in demanding conditions.

These components ensure that the Simple Pump system operates efficiently, whether integrated into a residential plumbing system or used for off-grid applications.

Why Choose Simple Pump?

  • Reliability: Trusted since 1999 for consistent performance
  • Quality: Precision-machined from the finest materials
  • Versatility: Adaptable to various well configurations and power sources
  • Support: Exceptional customer service and technical assistance

Secure your water independence today with Simple Pump. Whether for everyday use, emergency preparedness, or off-grid living, our pump delivers peace of mind and consistent water access.

Experience the Simple Pump difference. Contact us today to discuss your water pumping needs and receive a personalized solution tailored to your well specifications.

Installation Options

Installing your Simple Pump system is straightforward and flexible, with options to suit any level of experience or available resources. Whether you prefer a hands-on approach or professional assistance, Simple Pump ensures a smooth installation process tailored to your needs.

DIY Installation

For those comfortable with tools and basic well mechanics, a DIY installation is a great choice. Simple Pump systems are designed with user-friendly components and detailed instructions to make self-installation manageable. Components are clearly labeled and packaged with all necessary tools, including Teflon tape, anti-seize, and Loctite, to ensure a secure and leak-free setup. With proper preparation and adherence to the provided guidelines, most DIY users can successfully install their system.

Check out the links to our installation manual and installation video in the Downloads and Video sections above.

Simple Pump Authorized Dealer

Authorized Simple Pump dealers are experienced in handling installations and can ensure every detail is attended to with professional precision. If you’re looking for a seamless and efficient installation process, dealers are equipped with the expertise and tools to set up your system quickly and correctly, no matter the well configuration.

Local Well Pump Installer or Plumber

For customers who prefer or require local expertise, a well pump installer or plumber can also install your Simple Pump system. This option is ideal for more complex setups, such as wells with pipe-through caps or unique configurations that demand specialized tools and experience. Local professionals can ensure your installation meets all specifications while minimizing downtime.

With these flexible installation options, you can choose the approach that best suits your experience level and setup requirements. Whether you handle the process yourself or enlist professional assistance, Simple Pump makes installation as hassle-free as possible.
