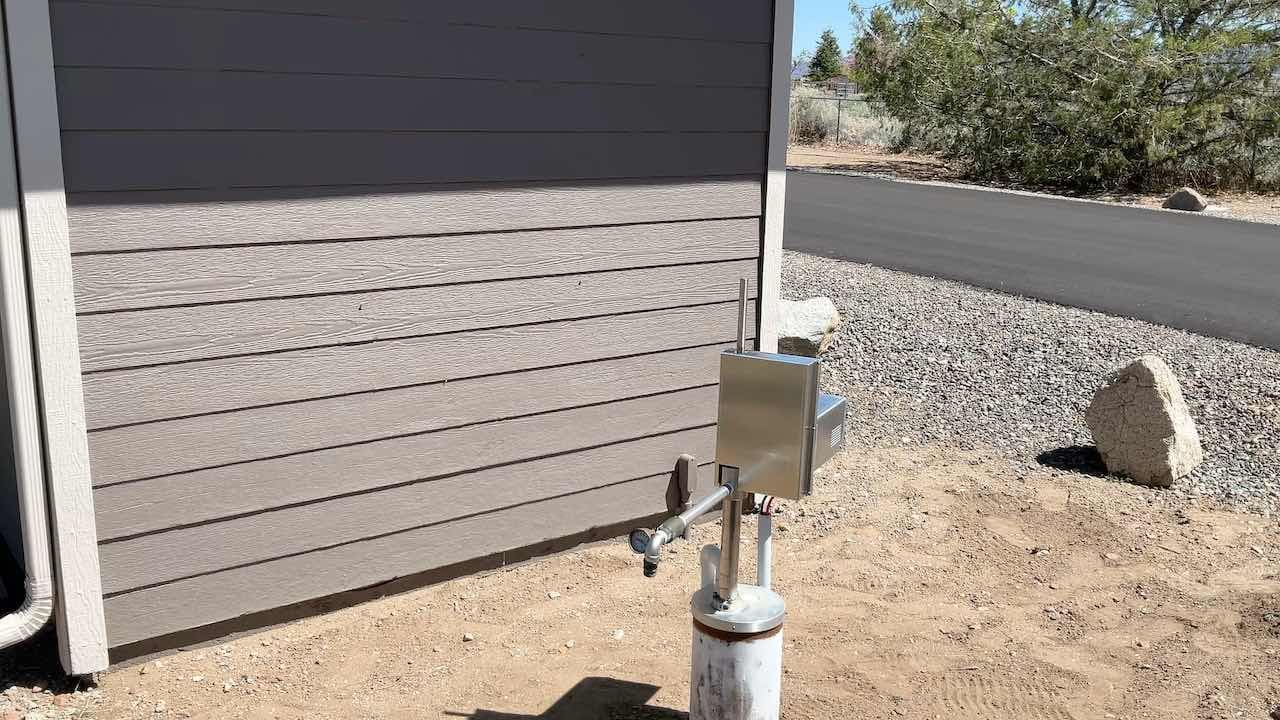

Motorized Well Pump System
Automated Simple Pump operation
The Linear Bearing Link Drive (LBLD) motor replaces the manual lever arm to provide automated pumping with lower lift capability than manual operation. Motor-driven systems pump up to 225 feet vs 325 feet with manual lever arm. Same pump components and cylinders (limits vary) as manual systems. Converts back to manual by removing motor and installing lever arm. Available in 12V or 24V DC configurations.
Do You Need More Water than You Can Physically Pump?
Upgrade from manual pumping while keeping backup capability
Manual Pumping Fatigue
Hand pumping 50+ gallons daily becomes exhausting and time-consuming
Single Point of Failure
Submersible pumps leave you stranded during any power interruption
Emergency Preparedness Gap
When disaster strikes, you need water access regardless of grid status
Don't Wait for Emergency to Strike
The best time to install a backup water system is before you need it. When the power goes out, it's too late to wish you had prepared.
Automated Water When You Need It
Convert your manual pump to automated operation while keeping hand pump backup.
DC power operation (12V/24V)
Works with batteries, solar, generators, or grid power
Lower lift than manual but automated
Motor provides 225 ft max vs 325 ft manual operation. Trade lift capability for automation.
Manual conversion capability
Convert to manual operation by removing motor assembly and installing lever arm handle (30-45 minute process)
Weather-resistant enclosure
Aluminum construction providing heat dissipation and protection from weather events
Pressure tank compatible
Pump directly into pressure tanks up to 45 PSI
Made in USA
Engineered, CNC-machined, and assembled in Nevada
What Our Customers Say
Real experiences from motorized Simple Pump owners
“The motor upgrade changed everything. Now we have automatic water with solar power, but can still pump by hand if needed. Perfect redundancy.”
John D.
Off-Grid Homestead
“We run our motorized pump off our tractor battery when filling water tanks. So much easier than hand pumping hundreds of gallons!”
Patricia M.
Ranch Owner
“Having both motor and manual options gives us true water security. The 24V motor handles our 180-foot well easily.”
Dave K.
Emergency Preparedness
Motorized System Specifications
Detailed specifications for the Motorized Well Pump System. All Simple Pump systems are engineered for reliability and built to last.
Pump Performance
Water When You Need It
Deep Well Access
Reliable water from wells up to 225 feet static water level
Emergency Ready
Manual lever arm configuration ensures water access during power outages
Peace of Mind
Backed by our comprehensive warranty - see warranty page for details - Made in USA since 1999
Configure Your Water Security System
Every well is unique. Our experts will configure the perfect manual pump system for your specific static water level and daily water needs.
Performance Specifications by Cylinder Model
Choose the right cylinder for your depth requirements and flow needs. All cylinders work with both manual and motorized operation.
| Cylinder Model | Maximum Depth (Static Water Level) | Output | Recommended Motor |
|---|---|---|---|
| 100CA | 12V: 200' | 24V: 225' | ~1 GPM | 12V or 24V motor systems |
| 125CA | 12V: 125' | 24V: 150' | ~2 GPM | 12V or 24V motor systems |
| 200CA | 12V: 50' | 24V: 60' | ~5 GPM | 24V motor systems |
Important Notes:
- •Maximum depth refers to static water level (distance from surface to water at rest), not total well depth
- •12V motors typically draw 10-15 amps under load
- •24V motors typically draw 5-10 amps under load
- •All cylinders maintain manual pumping capability even when motorized
- •Performance may vary based on vertical rise and system configuration
Spare Parts & Seal Kits
Browse genuine spare parts, seal kits, and maintenance components compatible with your Motorized Well Pump System.
Typical Maintenance Interval: 5-10 years
Simple Pump systems require minimal maintenance with long service intervals between seal replacements.
Spare Parts Kit (Heavy-Duty)
Replacement parts kit for the Simple Pump heavy-duty handle assembly. Includes critical wear components to restore reliable operation and smooth performance.
Spare Parts Kit (Standard)
Replacement parts kit for the Simple Pump standard handle assembly. Includes critical wear components to restore reliable operation and smooth performance.
In Real Use
See how customers use the Motorized Well Pump System in real environments and installations.

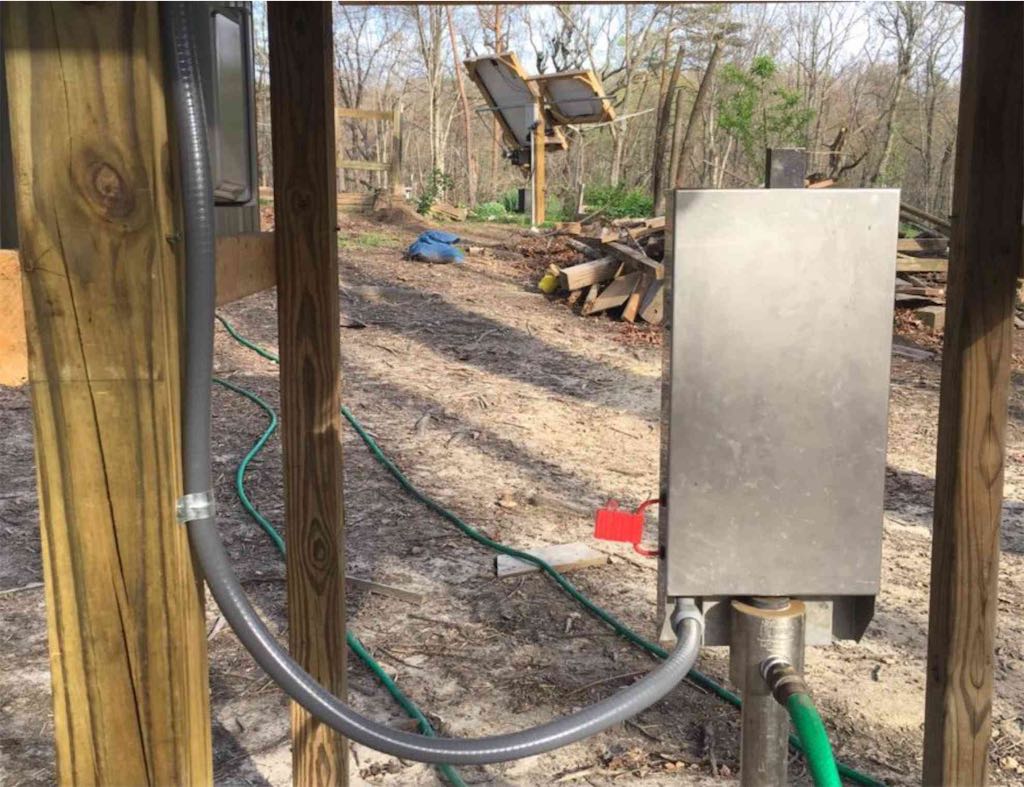

Customer Installation - Motorized Well Pump
emergency-backup

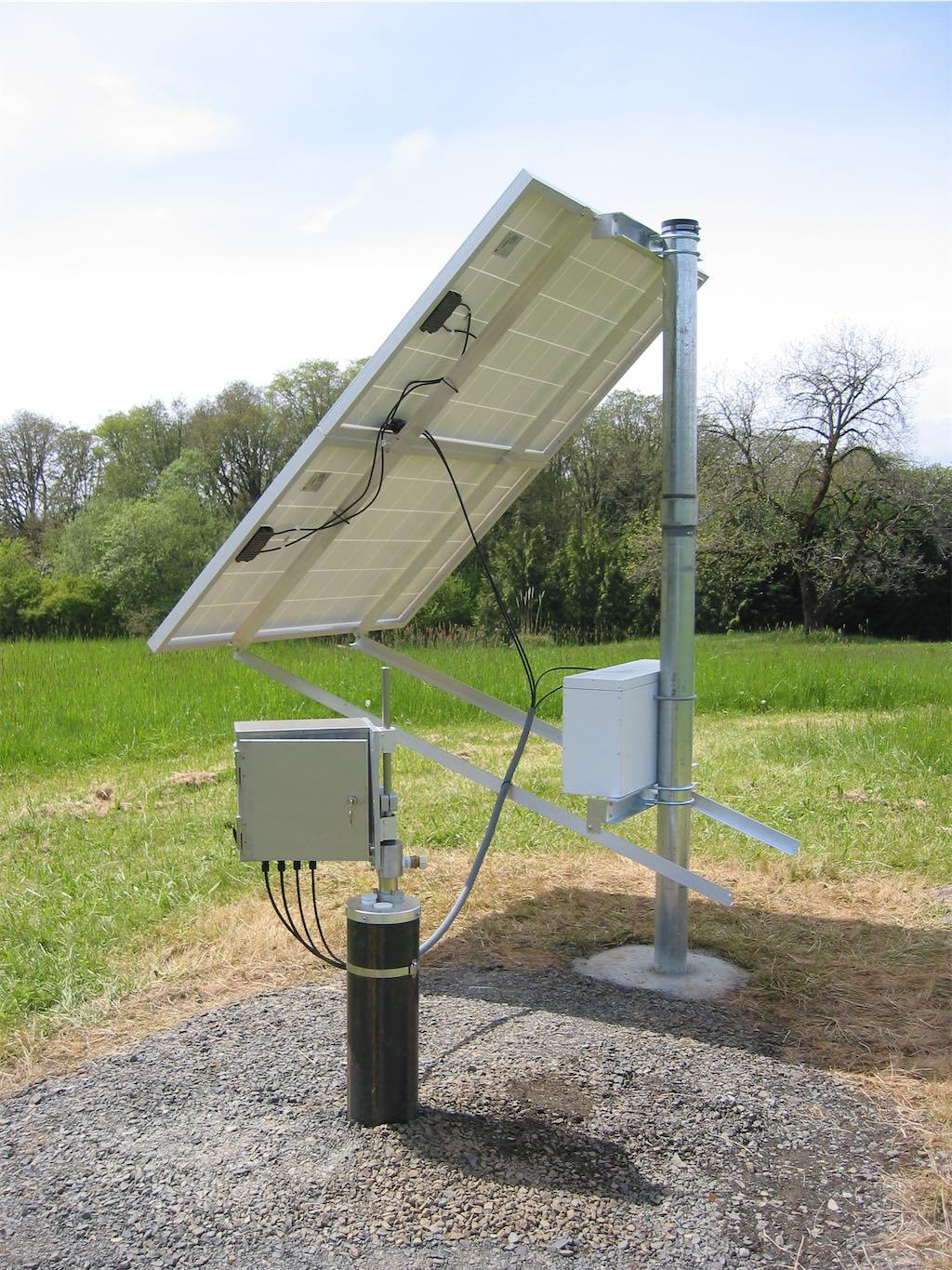

Customer Installation - Motorized Well Pump
emergency-backup

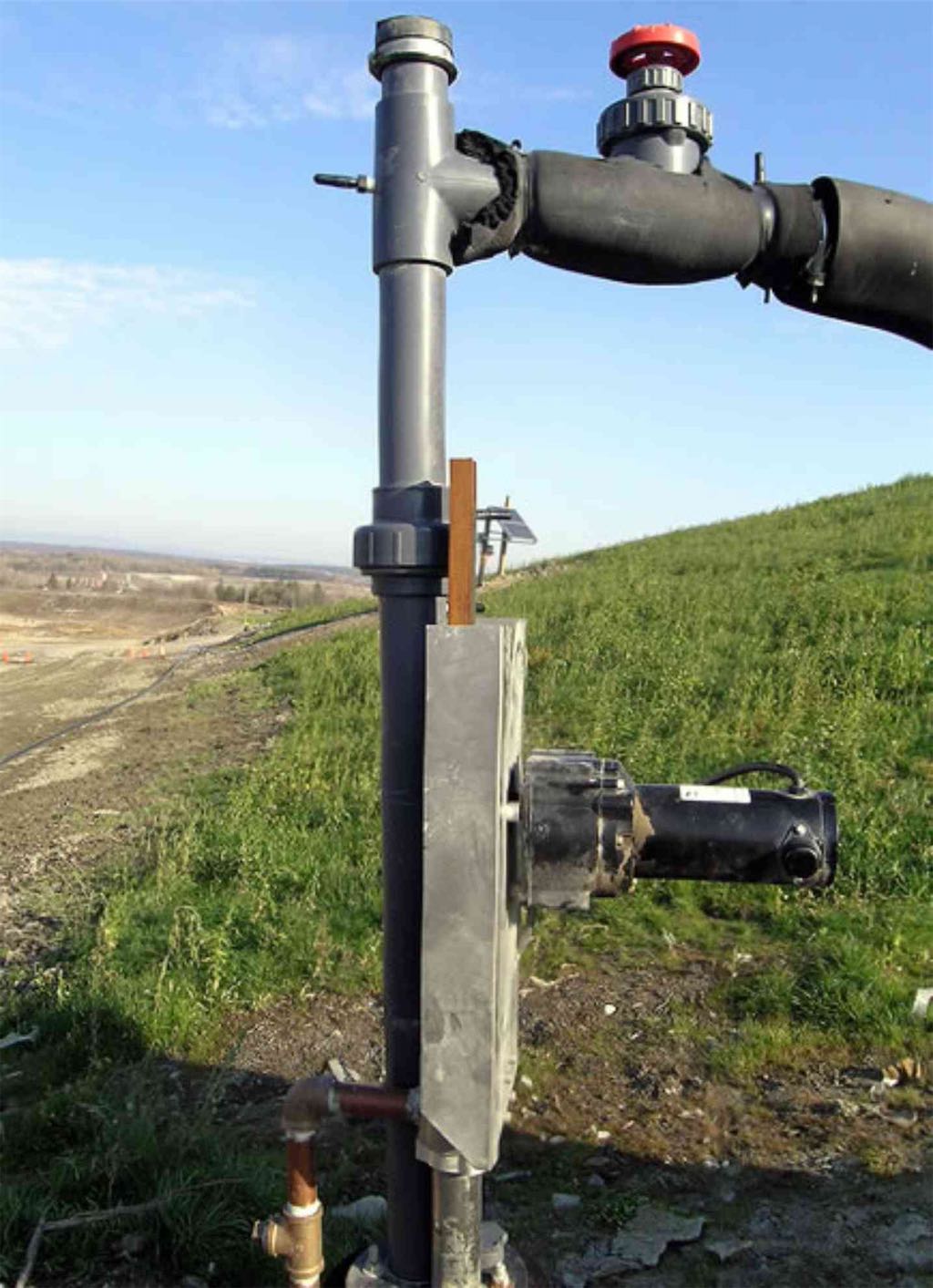

Customer Installation - Motorized Well Pump
emergency-backup

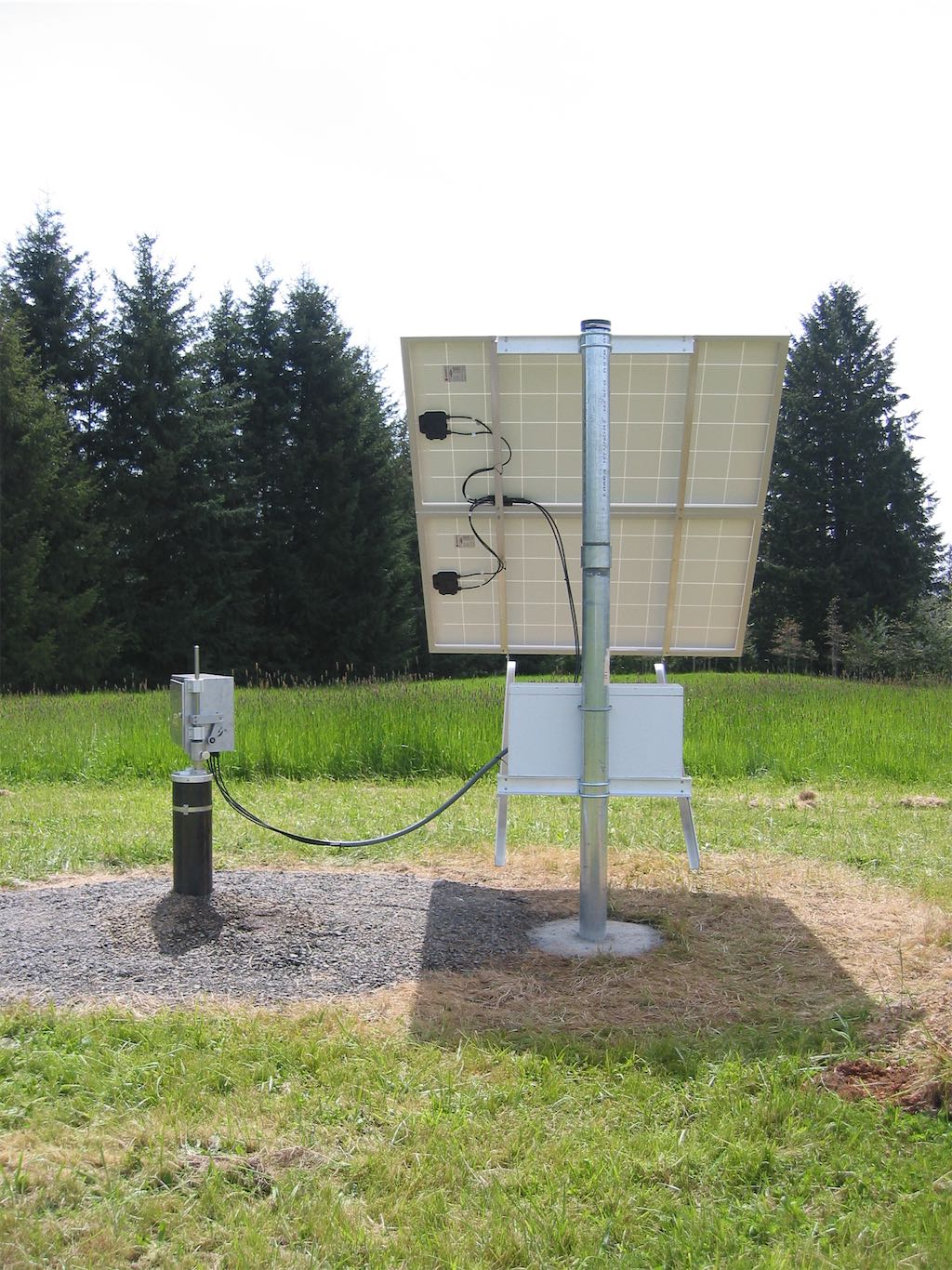

Customer Installation - Motorized Well Pump
emergency-backup

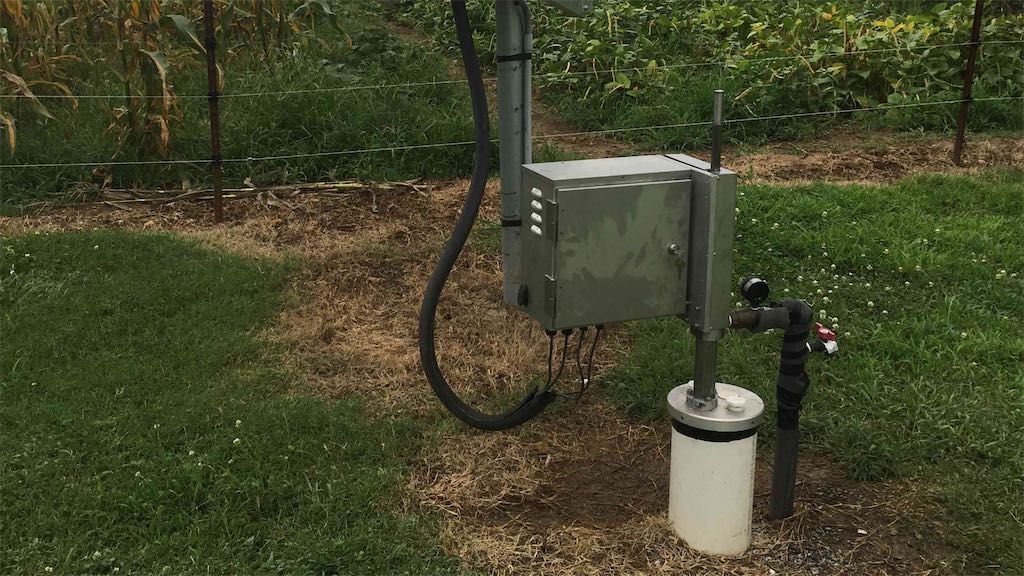

Customer Installation - Motorized Well Pump
emergency-backup

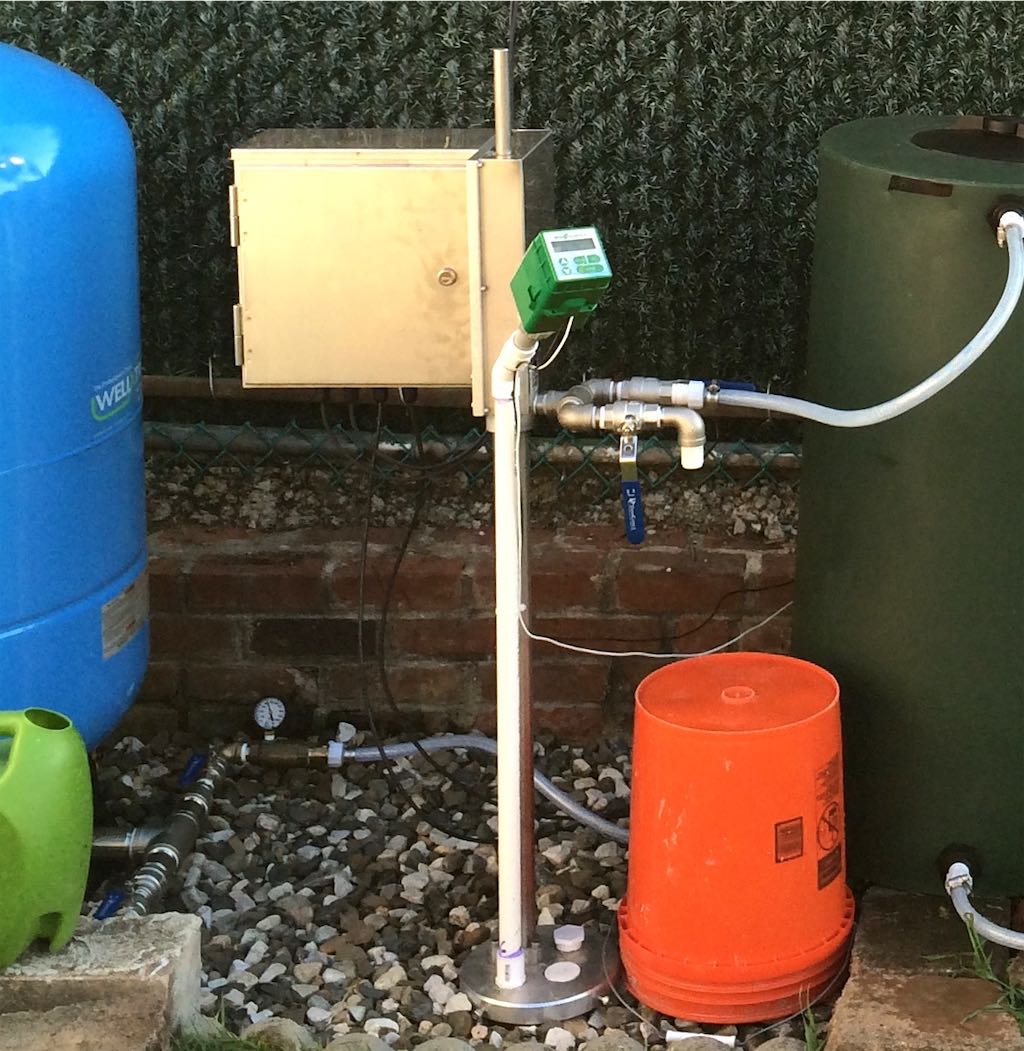

Customer Installation - Motorized Well Pump
emergency-backup
Ready to Get Started?
Seeing is believing. Request a detailed quote and our experts will help you configure the perfect Motorized Well Pump System for your well.
Configure Your Well Pump System
Design the perfect automated pumping solution with manual backup capability. Our experts will configure the perfect system for your specific requirements and provide accurate pricing based on your well specifications.
What You'll Receive
Request a free quote for exact pricing based on your well specifications
Frequently Asked Questions
Everything you need to know about the Motorized Well Pump System
Have More Questions?
Our pump experts are here to help you choose the right system for your needs.
Manual Backup Options
Add manual pump capabilities for complete water security
Deep Well Hand Pump
Up to 325 feet
Manual operation for static water levels up to 325 feet - the deepest reach of any hand pump
Best for:
Deep wells, backup water source
Shallow Well Suction Pump
Up to 25 feet
Perfect backup solution for static water levels up to 25 feet with pressure tank capability
Best for:
Shallow wells, easy installation
Solar Powered Well Pump
Solar-powered operation
Off-grid independence with renewable energy for remote locations
Best for:
Off-grid locations, environmental sustainability
Not Sure Which System Is Right for You?
Our quick price estimate tool helps you choose the perfect pump based on your static water level, water needs, and specific requirements.
Need personalized recommendations? Our water system experts can help you choose the right solution.
Automate Your Water System Today
Upgrade to automated pumping with 12V or 24V DC power while maintaining manual backup.
✓ Backed by our comprehensive warranty - see warranty page for details • ✓ Made in USA since 1999 • ✓ 20,000+ Customers Worldwide
