Solar Powered Well Pump Kit
Solar powered Simple Pump operation
The solar powered well pump system adds solar power source to our motorized pump options. Same LBLD motor system with identical lift capabilities as motorized pumps, but powered by renewable solar energy. Includes 740 watts of solar panels (two 370-watt panels), 12V or 24V motor options, MPPT charge controller, and weather-resistant enclosure with 100MPH wind-rated mounting hardware. Batteries are customer-provided. Same reduced lift capability vs manual operation but with solar independence.
True Water Independence or Just Another Dependency?
Submersible pumps stop working when you need them most
Electricity Dependent Water
When your submersible motor stops, your pump system stops delivering water
Single Point of Failure
Submersible pumps leave you stranded during any power condition
Emergency Preparedness Gap
When disaster strikes, you need water access regardless of power status
Don't Wait for Emergency to Strike
The best time to install a backup water system is before you need it. When the power goes out, it's too late to wish you had prepared.
Complete Off-Grid Water Independence
Everything you need for solar water pumping with battery backup and manual override. Perfect for remote properties and sustainable living.
740 watts solar power
Two 370-watt monocrystalline panels with MPPT charge controller for reliable energy
Battery backup ready
Pump water day or night with battery storage (batteries customer-provided)
Complete off-grid solution with manual backup
Everything needed for solar independence, plus manual conversion capability when batteries depleted
Manufacturer warranty included
Solar components backed by manufacturer warranty
Programmable timer included
Set automated pumping schedules to fill tanks
Assembled in USA
Quality components assembled in Nevada
What Our Solar Customers Say
Real experiences from Simple Pump solar system owners
"This solar kit gave us complete water independence. Haven't touched the hand pump in months, but it's there if we need it. Perfect system."
Robert K.
Off-Grid Arizona
"The battery backup means we have water 24/7, even on cloudy days. Installation was straightforward with excellent support from Simple Pump."
Jennifer S.
Mountain Retreat
"Powers our irrigation and household water needs. The timer feature lets us fill tanks automatically. Best investment for our sustainable farm."
Mark T.
Sustainable Farm
Solar System Specifications
Detailed specifications for the Solar Powered Well Pump Kit. All Simple Pump systems are engineered for reliability and built to last.
Pump Performance
Water When You Need It
Deep Well Access
Reliable water from wells up to 225 feet static water level
Emergency Ready
Battery backup and manual lever arm ensure water access during extended outages
Peace of Mind
Backed by our comprehensive warranty - see warranty page for details - Made in USA since 1999
Configure Your Water Security System
Every well is unique. Our experts will configure the perfect manual pump system for your specific static water level and daily water needs.
Performance Specifications by Cylinder Model
Choose the right cylinder for your depth requirements and flow needs. All cylinders work with both manual and solar-powered motorized operation.
| Cylinder Model | Maximum Depth (Static Water Level) | Output | Recommended Motor |
|---|---|---|---|
| 100CA | 12V: 200' | 24V: 225' | ~1 GPM | 12V or 24V motor systems |
| 125CA | 12V: 125' | 24V: 150' | ~2 GPM | 12V or 24V motor systems |
| 200CA | 12V: 50' | 24V: 60' | ~5 GPM | 24V motor systems |
Important Notes:
- •Maximum depth refers to static water level (distance from surface to water at rest), not total well depth
- •12V motors typically draw 10-15 amps under load
- •24V motors typically draw 5-10 amps under load
- •Solar systems available in both 12V and 24V configurations
- •All cylinders maintain manual pumping capability even when motorized
- •Performance may vary based on vertical rise and system configuration
Spare Parts & Seal Kits
Browse genuine spare parts, seal kits, and maintenance components compatible with your Solar Powered Well Pump Kit.
Typical Maintenance Interval: 5-10 years
Simple Pump systems require minimal maintenance with long service intervals between seal replacements.

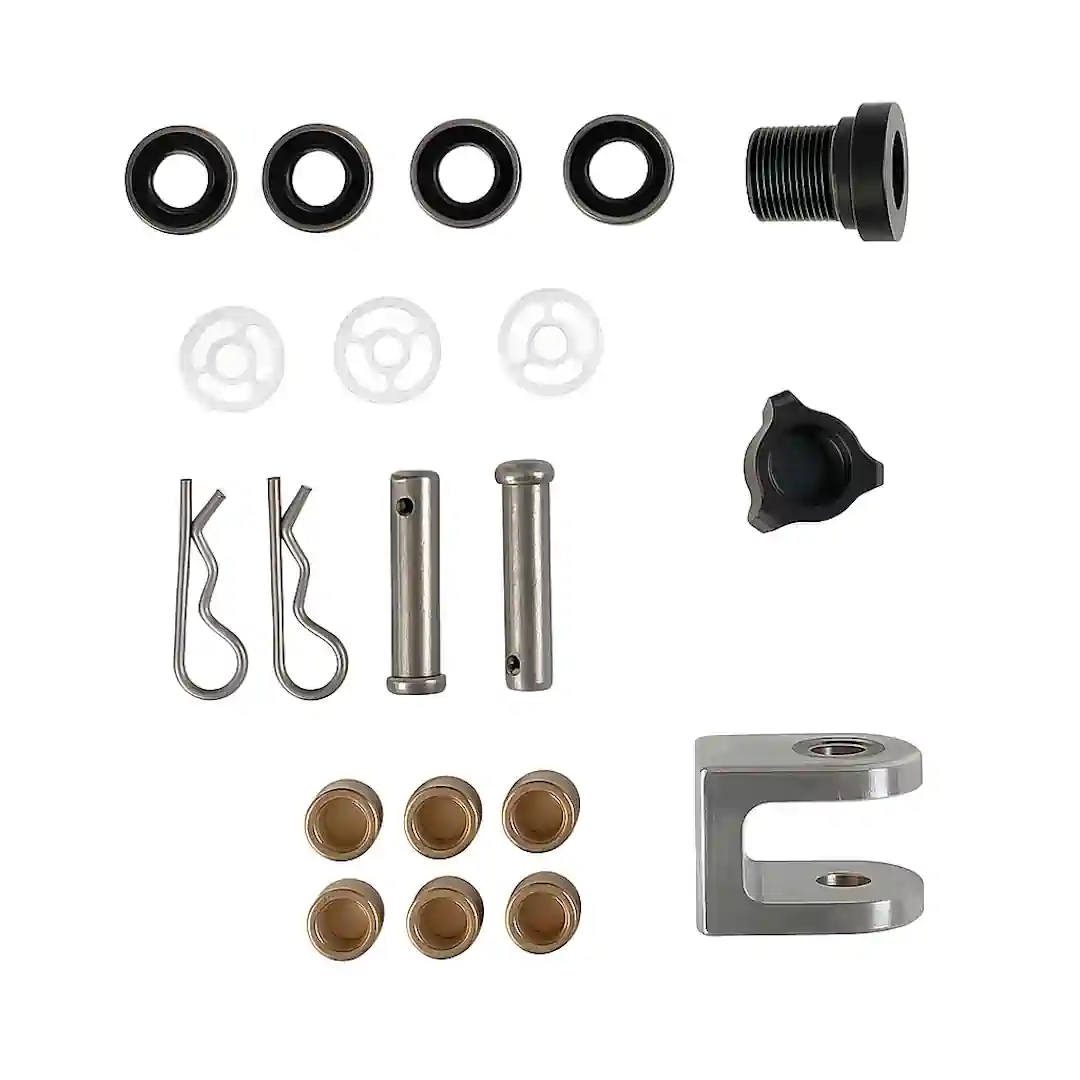

Spare Parts Kit (Heavy-Duty)
Replacement parts kit for the Simple Pump heavy-duty handle assembly. Includes critical wear components to restore reliable operation and smooth performance.

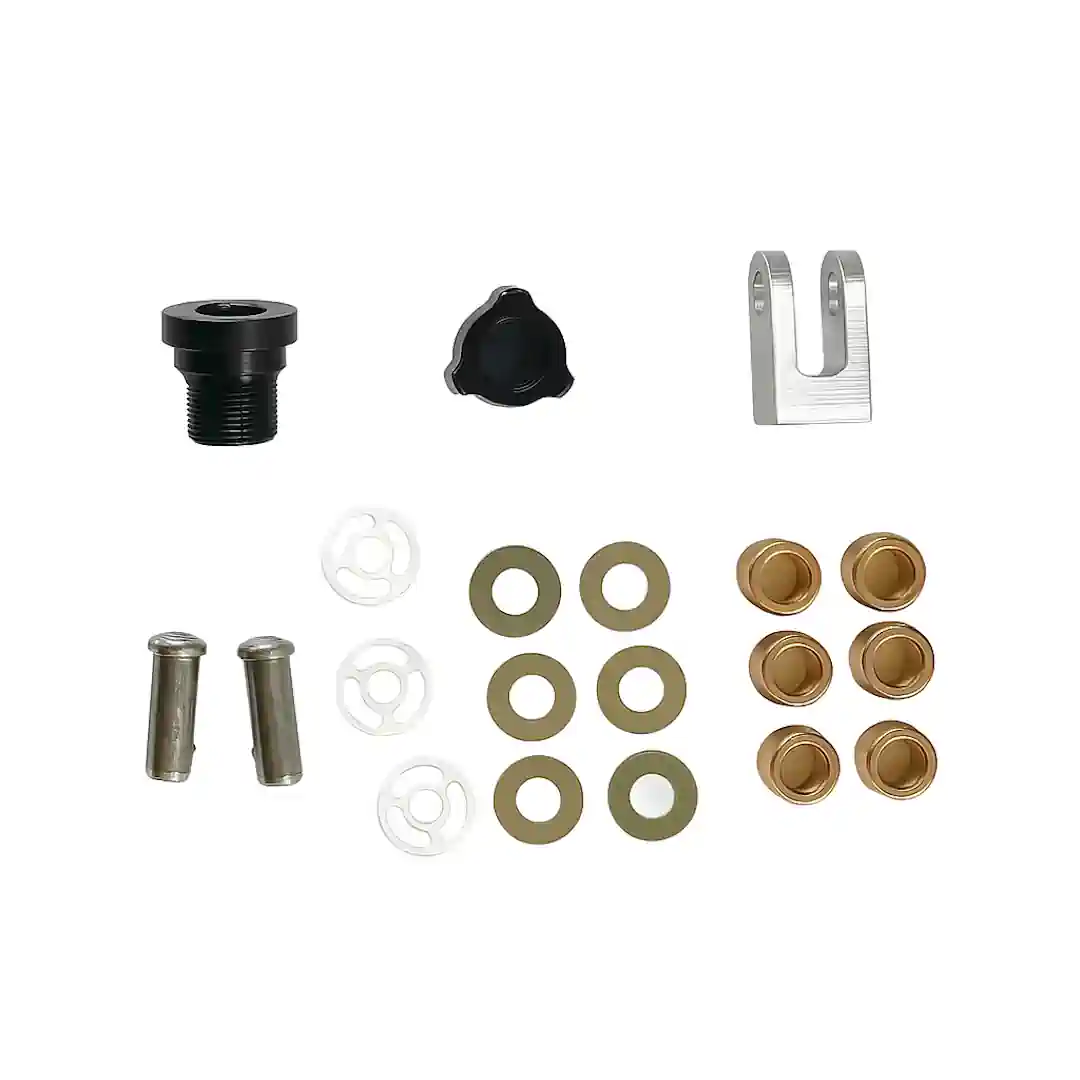

Spare Parts Kit (Standard)
Replacement parts kit for the Simple Pump standard handle assembly. Includes critical wear components to restore reliable operation and smooth performance.
In Real Use
See how customers use the Solar Powered Well Pump Kit in real environments and installations.

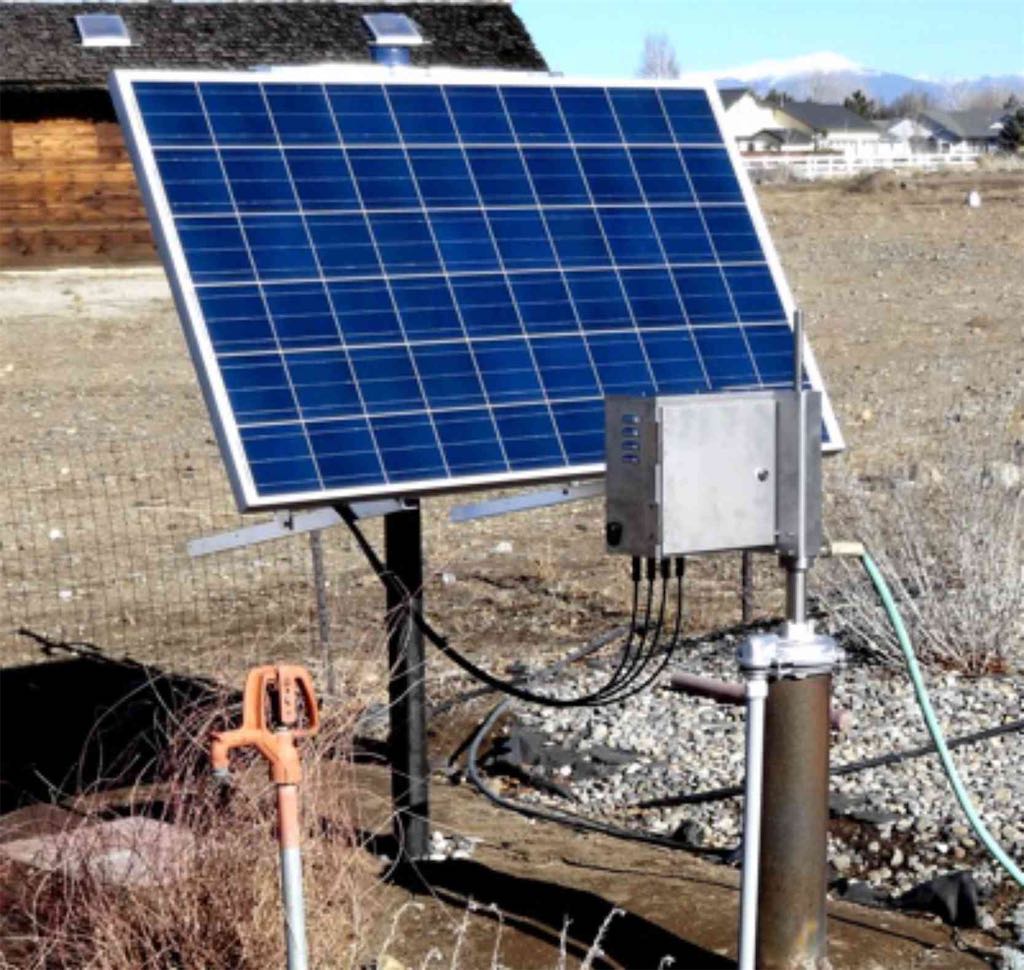

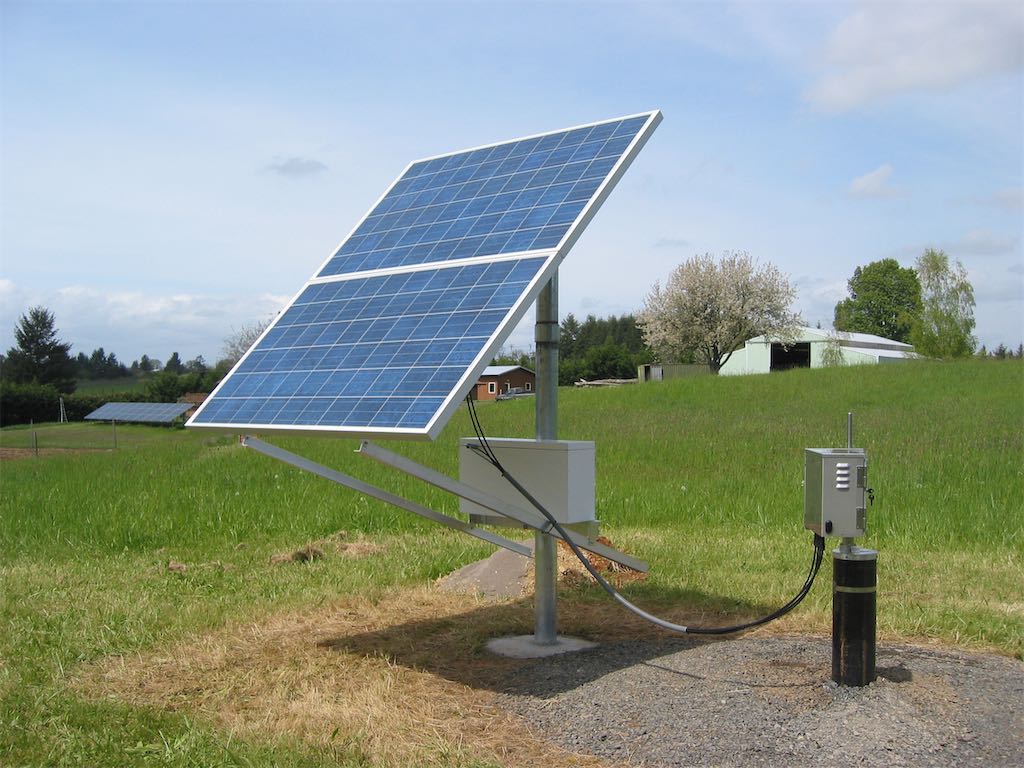

Customer Installation - Solar Powered Well Pump
emergency-backup

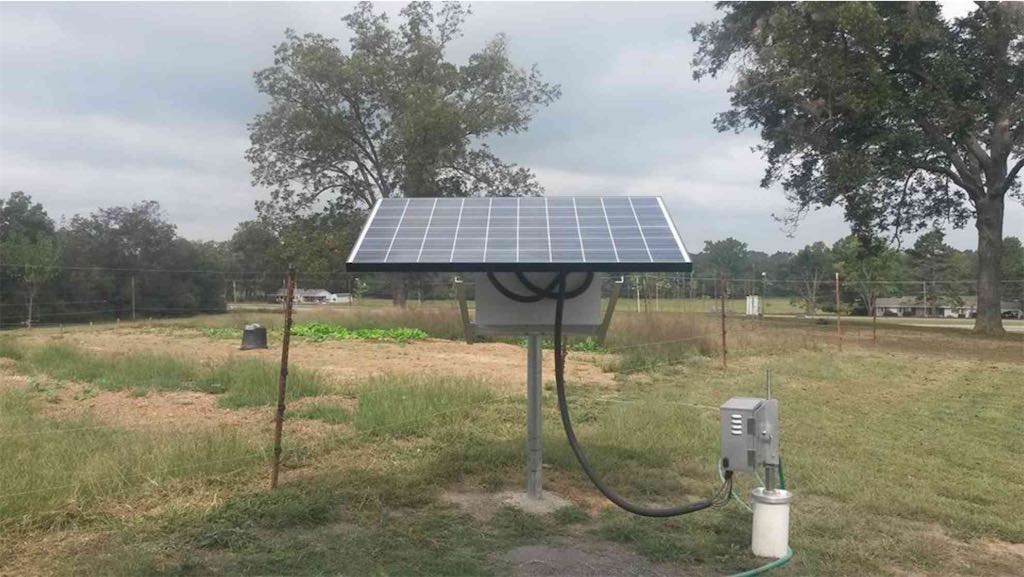

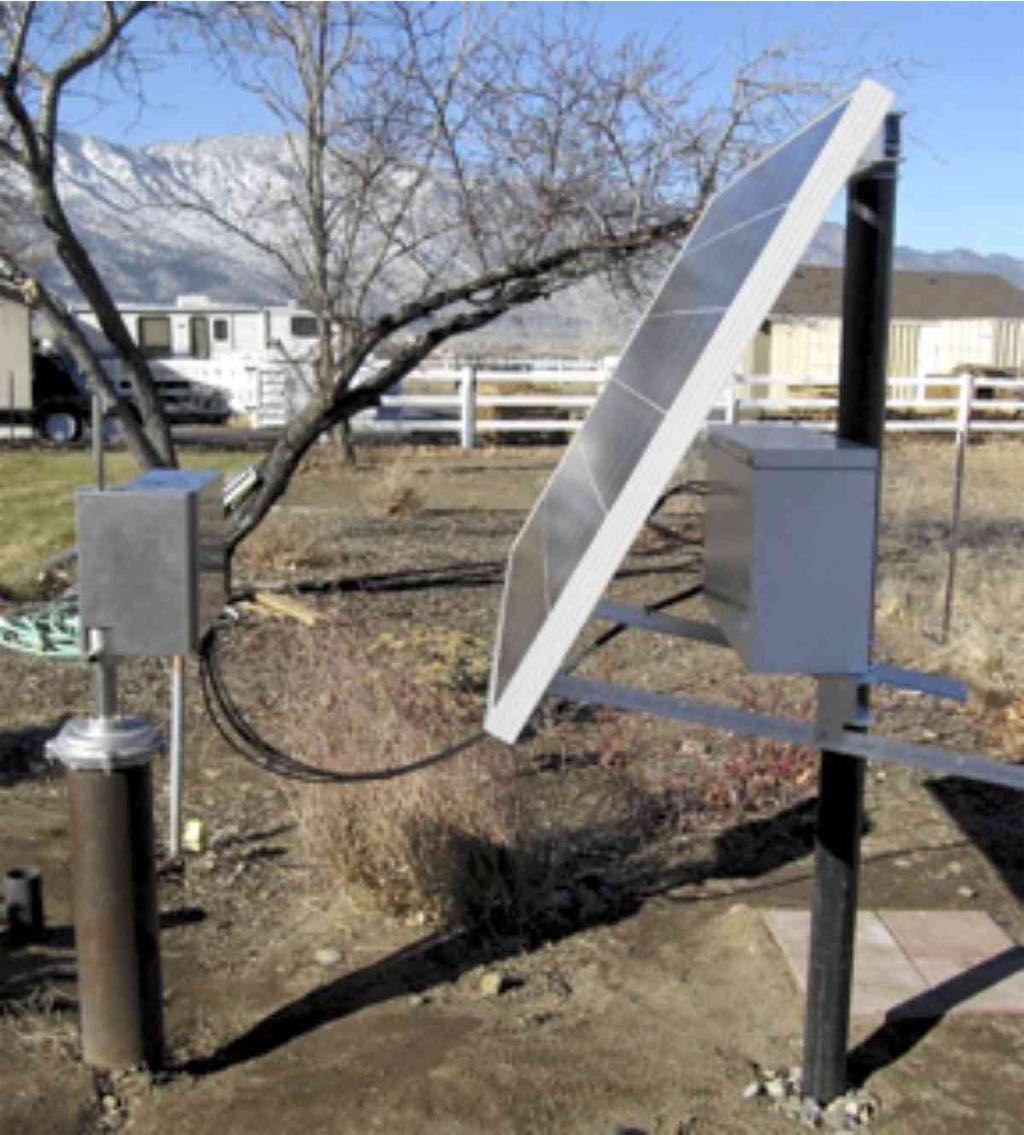

Customer Installation - Solar Powered Well Pump
emergency-backup

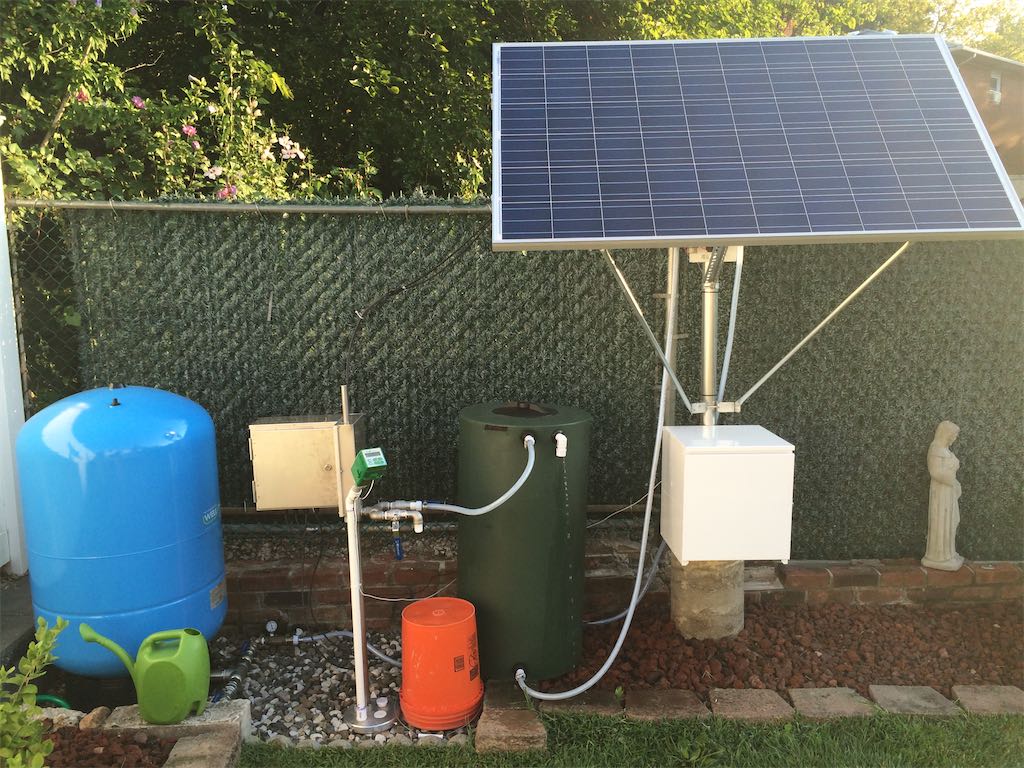

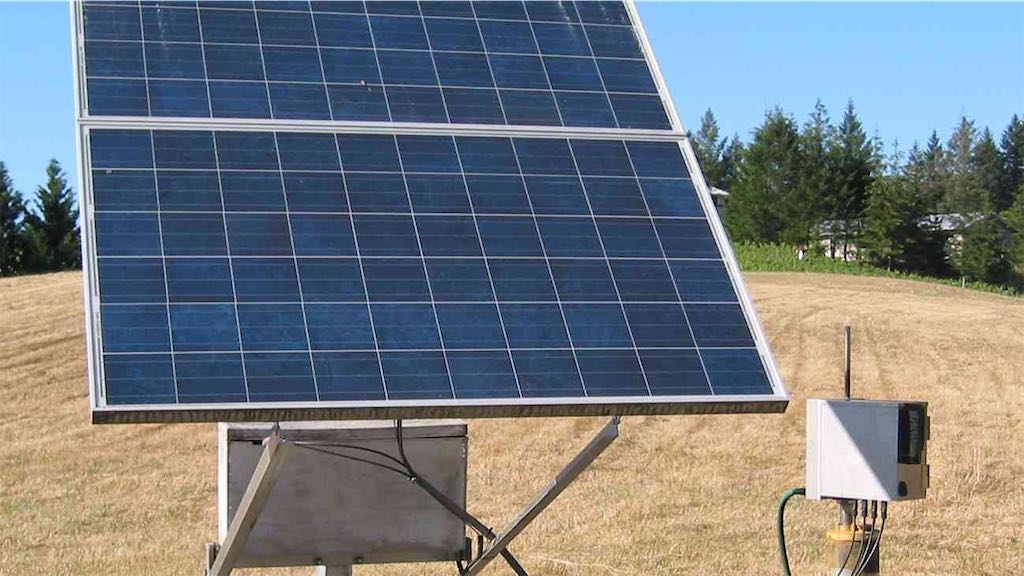

Customer Installation - Solar Powered Well Pump
emergency-backup

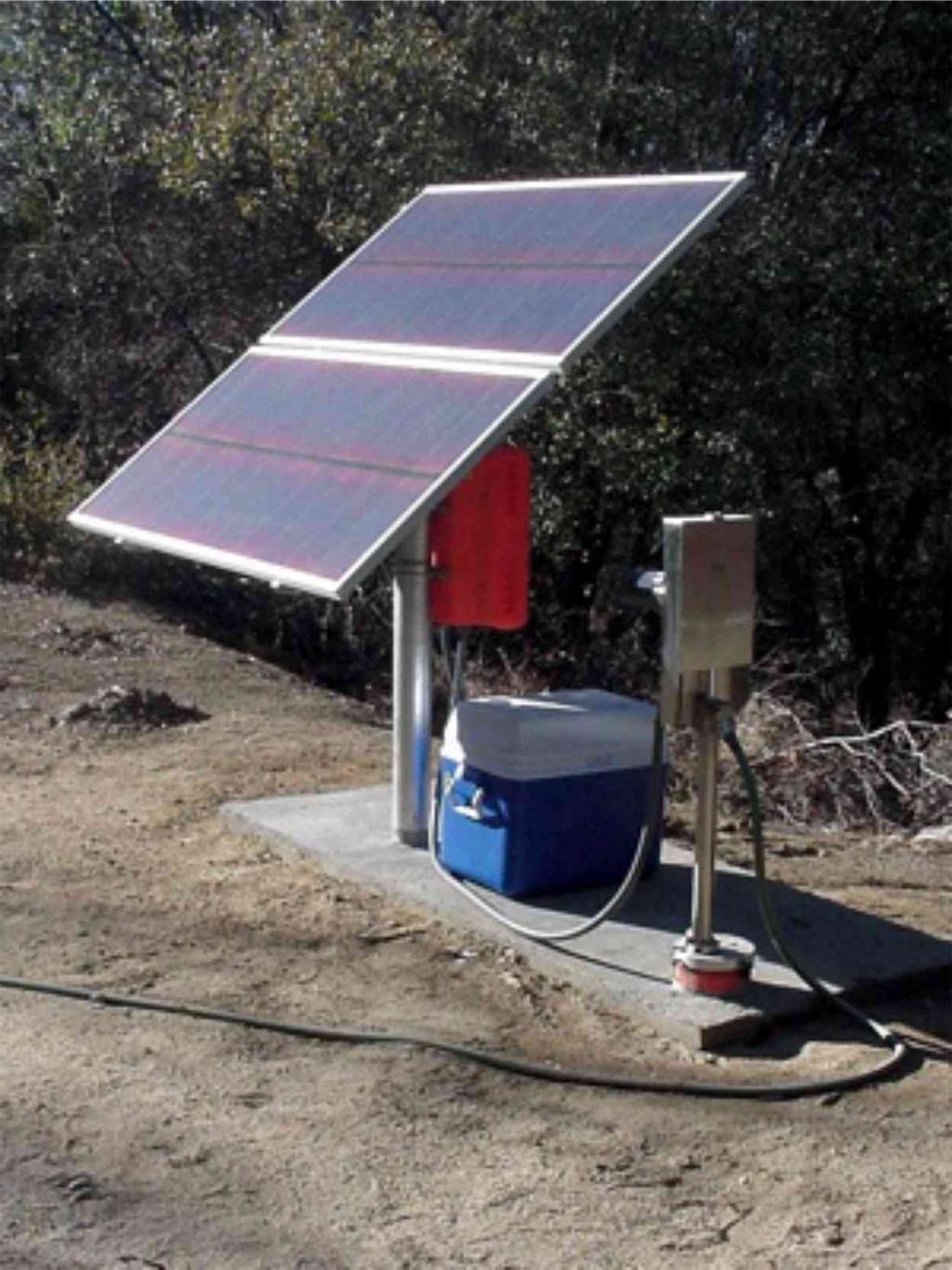

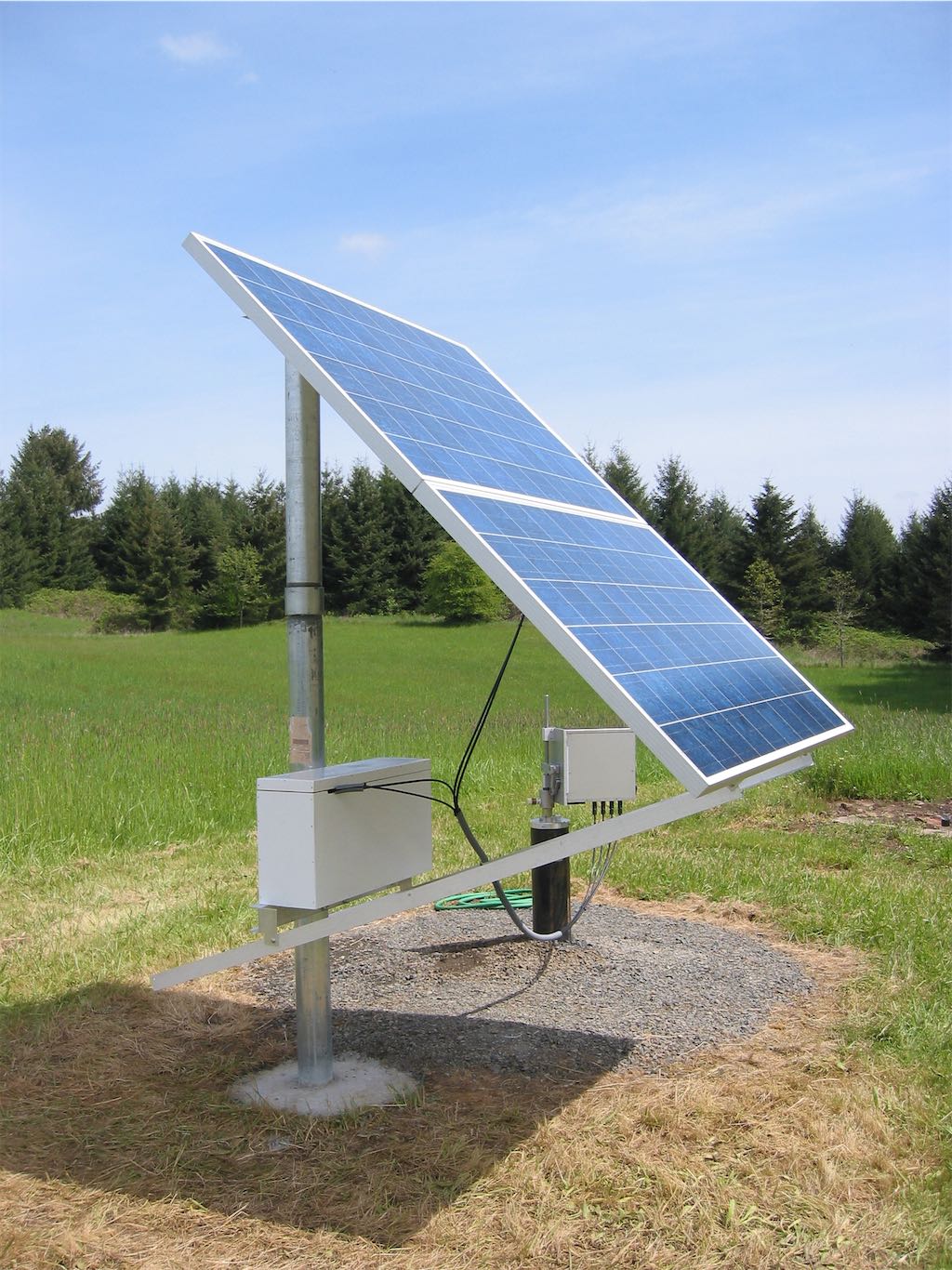

Customer Installation - Solar Powered Well Pump
emergency-backup

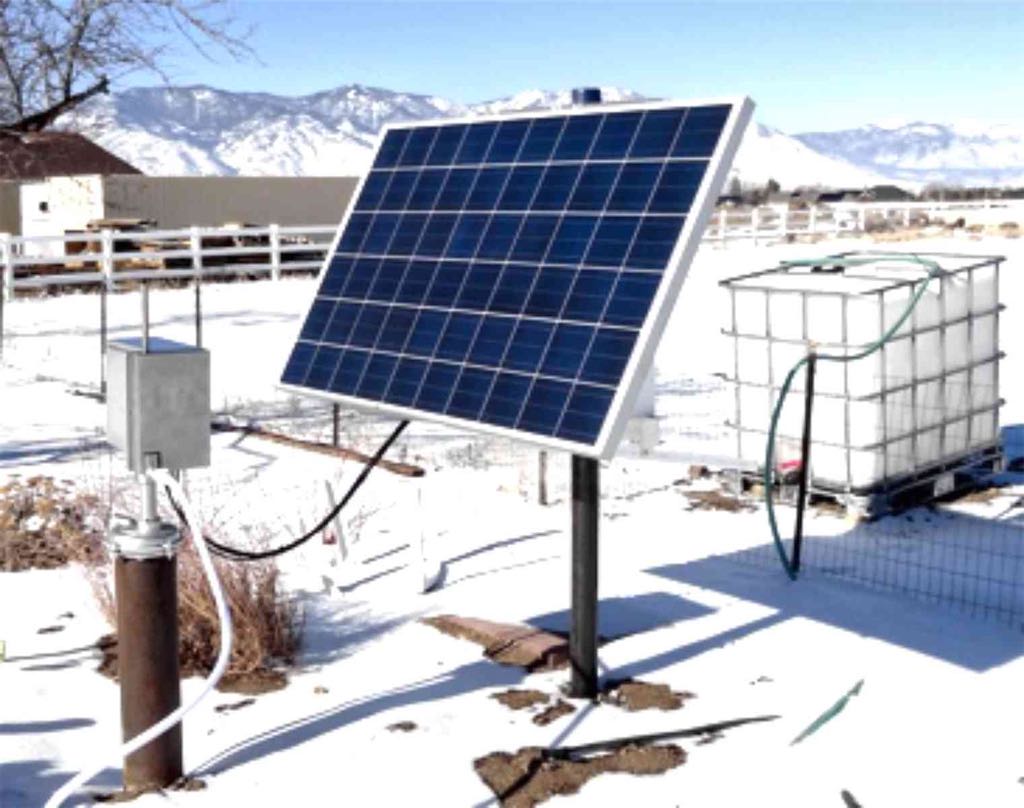

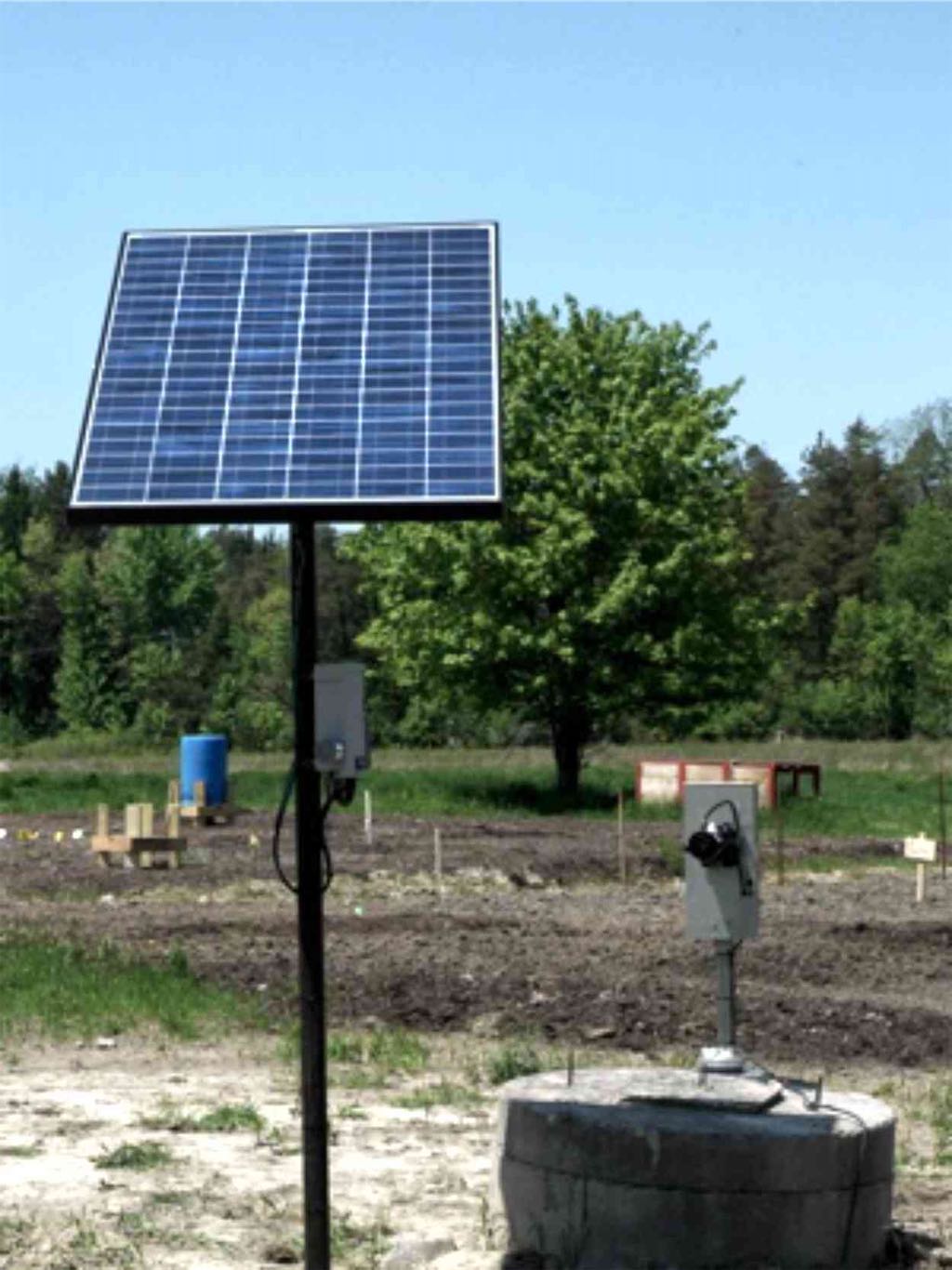

Customer Installation - Solar Powered Well Pump
emergency-backup

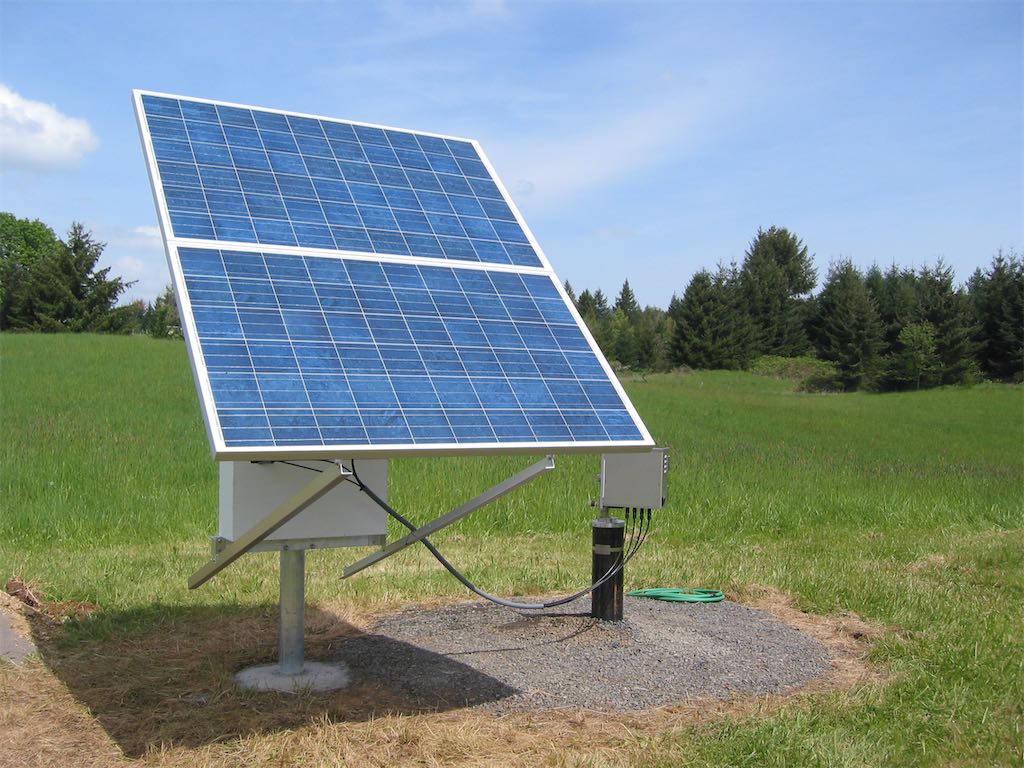

Customer Installation - Solar Powered Well Pump
emergency-backup
Customer Installation - Solar Powered Well Pump
emergency-backup
Customer Installation - Solar Powered Well Pump
emergency-backup
Customer Installation - Solar Powered Well Pump
emergency-backup
Customer Installation - Solar Powered Well Pump
emergency-backup
Customer Installation - Solar Powered Well Pump
emergency-backup
Customer Installation - Solar Powered Well Pump
emergency-backup
Ready to Get Started?
Seeing is believing. Request a detailed quote and our experts will help you configure the perfect Solar Powered Well Pump Kit for your well.
Configure Your Well Pump System
Complete off-grid water independence with solar power. Our experts will configure the perfect system for your specific requirements and provide accurate pricing based on your well specifications.
What You'll Receive
Request a free quote for exact pricing based on your well specifications
Why Simple Pump Solar Stands Apart
The Simple Pump Solar system was carefully designed with our tradition of "Quality to Last a Lifetime" — in contrast to products conceived in reverse: price first, profit second, product last.
Advanced Solar Technology
- High-efficiency panels begin charging at first light, even in low-light conditions of early morning and evening
- Smart solar controller maintains high operating voltage for consistent RPM while simultaneously charging batteries
- Battery bank guarantee provides full day runtime with no sun at all
Superior Design & Installation
- Above-ground installation: Entire solar package stays above ground for easy installation and service
- Ground-level motor: Motor stays at surface level, not submerged in the well like competitors
- Economical component replacement: Individual parts can be replaced vs. entire system replacement
- Complete electrical setup: All electrical components pre-configured and tested
Proven "Old-School" Mechanics + Modern Technology
Our system combines the most current solar technology for maximum performance with bulletproof mechanical reliability. While others focus on price and profit, we engineer for quality, durability, and customer satisfaction that lasts a lifetime.
Frequently Asked Questions
Everything you need to know about the Solar Powered Well Pump Kit
Have More Questions?
Our pump experts are here to help you choose the right system for your needs.
Complementary Systems
Combine with manual systems for ultimate reliability
Deep Well Hand Pump
Up to 325 feet
Manual operation for static water levels up to 325 feet - the deepest reach of any hand pump
Best for:
Deep wells, backup water source
Shallow Well Suction Pump
Up to 25 feet
Perfect backup solution for static water levels up to 25 feet with pressure tank capability
Best for:
Shallow wells, easy installation
Motorized Well Pump
Variable depth compatibility
Automated operation with the reliability of our proven pump design
Best for:
Automated operation, high volume
Not Sure Which System Is Right for You?
Our quick price estimate tool helps you choose the perfect pump based on your static water level, water needs, and specific requirements.
Need personalized recommendations? Our water system experts can help you choose the right solution.
Achieve Complete Water Independence
Complete solar pumping system with 740 watts of solar power (two 370W panels), MPPT charge controller, and manual override. No grid electricity needed for water independence. Batteries customer-provided.
✓ Backed by our comprehensive warranty - see warranty page for details • ✓ Made in USA since 1999 • ✓ 20,000+ Customers Worldwide
