12V Weather Resistant Linear Bearing Link Drive Motor Assembly
12V DC, 1/5 HP weather-resistant motor with aluminum enclosure and linear bearing link drive. Automates Simple Pump operation from depths up to 200 feet.
Discontinued — Support Available for Existing Owners
This product is no longer offered for new sales. Existing owners can continue to purchase spare parts and receive service support. Support available through March 2036.
We will continue to support our DC drives through 2036 so your existing customers will get the support they need.
Compatible Systems
Description

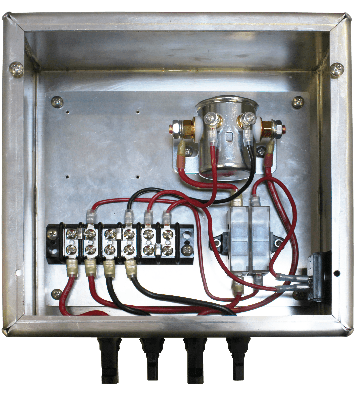

Motor Type: 12V DC, 1/5 HP weather-resistant motor with linear bearing link drive Lift Range: Pumps from up to 200 feet total head (water level + vertical rise + 100′ equivalent for pressure) Enclosure: Weather-resistant aluminum housing for heat dissipation and environmental protection Power Draw: 17 amps peak, 10–15 amps average, 25 amp fuse recommended Electrical Components: Includes relay, terminal block, and fuse holder with 25 amp automotive-style fuse Compatibility: Works with deep well pumps 100CA (200’ max lift), 125CA (125’ max lift), and 200CA (50’ max lift) cylinders. Works with shallow well pumps PHA-2-S-25 and PHA-47-S-25.
Why Choose Simple Pump
Since 1999
25+ Years Experience
Made in USA
Nevada Manufacturing
Global Reach
Worldwide Delivery
20,000+ Sold
Proven Reliability
Lifetime Warranty
Quality Guarantee
Water Safe Materials
NSF/FDA Certified Materials
US National Parks & Forest Service • BBB Accredited Business
Product Details
Technical Information
Discontinued
Spare parts support for existing owners
